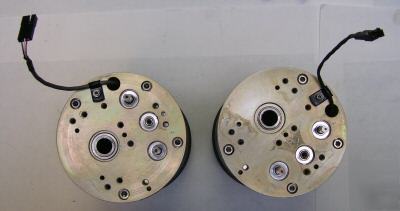

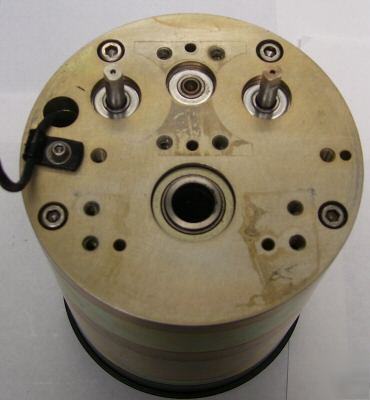

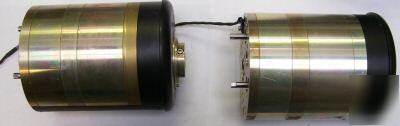

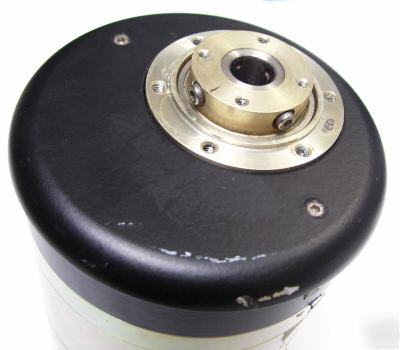

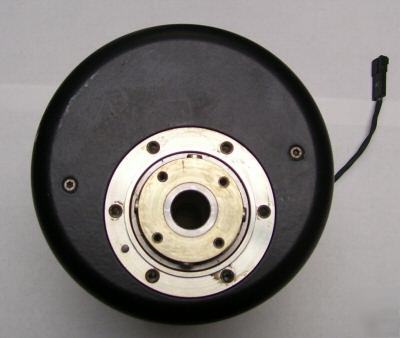

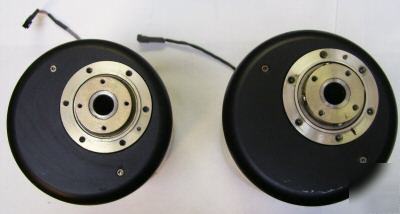

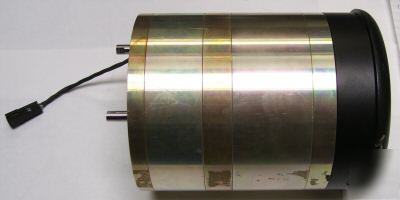

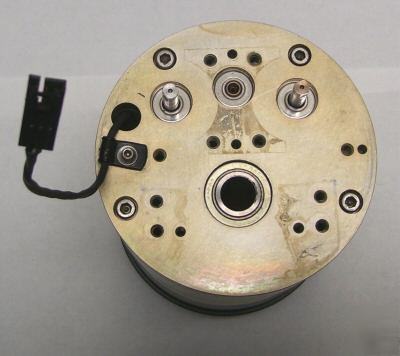

(TWO) 2 AXIS ROBOT ARM JOINTS. THERE ARE TWO CONCENTRIC ROTARY AXES OF MOTION. THEY ARE DRIVEN BY TWO INDEPENDENT 5.98mm SHAFTS. THERE IS A 1/2 INCH THROUGH HOLE THROUGH THE CENTER WHICH CAN BE USED FOR WIRES ETC. THE THREE WIRES SHOWN IN THE PICTURE COME FROM A POT WHICH IS GEAR DRIVEN INTERNALLY TO GIVE A RESISTANCE FOR THE CURRENT POSITION OF THE OUTER CIRCLE MOVEMENT. THE OUTER CIRCLE ONLY HAS A 350 DEGREE MOVEMENT BUT THE STOP CAN BE REMOVED TO ACHIEVE 360 DEGREE ROTATION. OUTER RING ROTATION RATIO: 23:1, MOUNTING BOLT PATTERN IS 6, 8-32 THREADED HOLES 2 INCH DIAMETER INNER CYLINDER ROTATION RATIO: 23:1. MOUNTING BOLT PATTERN IS 4, 6-32 THREADED HOLES 1.150 INCH DIAMETER THE APPROXIMATE OVERALL DIMENSIONS ARE: LENGTH INCLUDING SHAFTS IS 6.4 INCHES, DIAMETER OF GOLD COLOR SECTIONS ARE 4.2 INCHES AND THE THE BLACK PART HAS A LIP WHICH 4.3 INCHES AT THE TOP. 3) All of our items are sold as "guaranteed WORKING". 4) A full refund is given if you are unhappy with our items unless we come to some other agreement. 5) Communication is by "EMAIL ONLY". 8) If you pick up the item at our warehouse there is either a $10.00 charge or a $40.00 charge if a forklift is required. (please look at our rules and privacy policy) |
