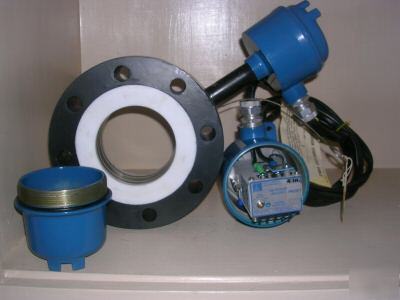

You are looking at one Ametek Drexelbrook Clearline In Line Fluid Detector. ELECTRONIC UNIT WITH SUPER HEAVY DUTY COTE SHIELD (TM) CIRCUITRY. LOW LEVEL FAILSAFE. 0-90 SEC. ADJ. TIME DELAY. HOUSING MEETS NEMA 1 TO 5 & 12. CLASS I 120 VAC 50/60 HZ SUPPLY. DPDT CONTACTS RATED: 5 AMPS NON-INDUCTIVE, 3 AMPS INDUCTIVE @ 120 VAC, 5 AMPS NON-INDUCTIVE, 2 AMPS INDUCTIVE @ 240 VAC. FOUR TERMINAL CABLE, 10 FT. LONG. IN-LINE OBSTRUCTIONLESS SANITARY SENSING ELEMENT FOR MOUNTING IN A VERTICAL 4" IPS PIPE AND MATING TO 4" 150# F.F. FLANGE PER ANSI B16.5. WETTED PARTS ARE 316L S.S. AND TEFLON. INCLUDES INTEGRAL CONDULET AND GROUND STRAP. A new system from the factory would cost $1,995.00. More information can be found on the Ametek Drexelbrooks web page. http://new.ametek.com/content-manager/files/STD//506-7100-000-A.pdf I have tested the units and they are working well. A new Hardy unit would cost you over $2,000.00 (please look at our rules and privacy policy) |
w-keith@machine--tools.com (Wayne Keith) for additional information. This email is used for forwarding to newsgroup user.
