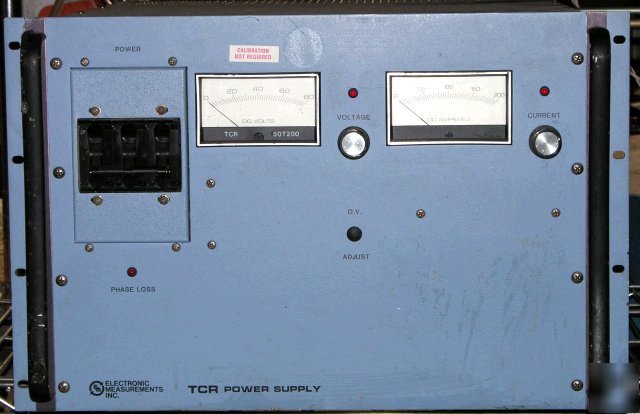

EMI 50T200-1 Analog 0-40VDC 0-200ADC Power Supply This is a used unit, with various small scratches, and excellent operational condition. Unit comes as shown, no other accessories are included. Please click on the link below to get the User's Manual in PDF format. Manufacturer's Specifications/Features: (Please note that not all features may be included in this item) The TCR series is a very robust design of SCR phase controlled regulated power supply. In an SCR phase-controlled DC Power Supply, output is controlled by modulating the conduction angle of the controlled SCRs. In the TCR Series, input AC is applied to three pair of bi-directionally connected SCRs placed within the delta connected primary of the main power transformer. The Secondary voltage of this transformer is rectified and double L/C filtered to provide a low ripple DC output. Both output voltage and current are sensed and compared against internal references or externally applied control levels so the supply provides either constant voltage or constant current regulation with automatic crossover depending on control level. Additional circuitry provides bias levels, circuit protection and metering functions. 0.6 to 1.8 kW: 115 VAC (Standard), 220 VAC (optional) single phase 2.8 kW, and 10 kW: 208 VAC (standard), 440 VAC (optional) three phase Transient response: 30% load change will recover to 2% within 75 milliseconds. Operating temperature: 0-40 deg C, derate above 40 deg C Front panel controls and remote analog resistance, voltage and current programming (standard); ANOTHER GREAT DEAL FROM TECHRECOVERY! * Test equipment with calibration comes with a 100 day guarantee from defects and 10 day right of return. * At TechRecovery, your complete satisfaction is our goal. If you have any questions, don't hesitate to call us at (***)-738-5201 with questions. (please look at our rules and privacy policy) |
