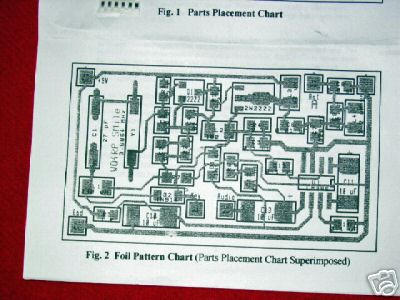

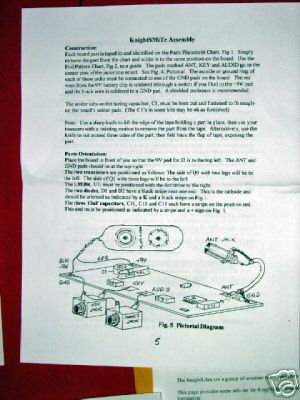

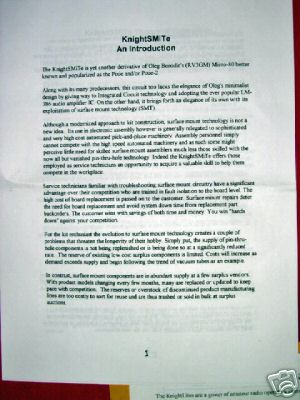

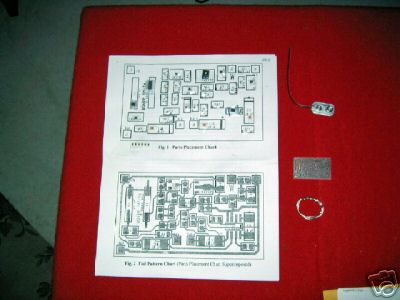

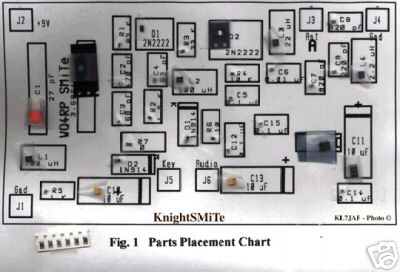

For those unfamiliar with the KnightSMiTe project, it is a Surface Mount technology tranceiver kit. The board measures 1" X 1-3/4". The circuit is a much revised Pixie II, that is, a DC receiver and about 100 - 250mW output. It uses a 3.6864 MHz crystal. Our version has a Variable Crystal Oscillator and offset, so the received signal can be heard even when it zero beats the KnightSMiTe signal. Power is supplied by a 9V battery. This kit consists of a board and the parts to go on the board. It doesn't include jacks for the Antenna, phones and key or an enclosure. Instructions are minimal, but a unique system is used which makes assembly simple. Extra parts are included for practice soldering the SM chips. (please look at our rules and privacy policy) |
