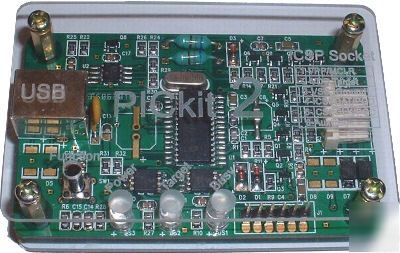

PIC KIT 2 COMPATIBLE MICROCHIP PROGRAMMER USB Release Notes for PICkit(R) 2 Microcontroller Programmer *** You will need to ensure you are using firmware *** Version 2.01.00 before the application will work correctly. *** Use the "Download PICkit 2 Firmware" selection on the *** Tools dropdown menu. The new OS is normally located at *** C:\Program Files\Microchip\PICkit 2 v2\PK2V020100.hex 2. Operating System Support List * Indicates new parts supported in Device File version 1.00.00 PIC10F200 PIC10F202 PIC10F204 PIC10F206 PIC12F629 PIC12F635 PIC12F675 PIC12F683 PIC16F627A PIC16F628A PIC16F648A PIC16F630 PIC16F631 PIC16F636 PIC16F676 PIC16F677 PIC16F684 PIC16F685 PIC16F687 PIC16F73 PIC16F74 PIC16F76 PIC16F77 PIC16F737 PIC16F747 PIC16F767 PIC16F777 PIC16F870* PIC16F871* PIC16F872* PIC16F873* PIC16F874* PIC16F876* PIC16F877* PIC16F873A PIC16F874A PIC16F876A PIC16F877A PIC16F883 PIC16F884 PIC16F886 PIC16F887 PIC16F913 PIC16F914 PIC16F916 PIC16F917 PIC18F242 PIC18F252 PIC18F442 PIC18F452 PIC18F1220 PIC18F1320 PIC18F2220 PIC18F2320 PIC18F2331 PIC18F2410 PIC18F2420 PIC18F2431 PIC18F2450 PIC18F2455 PIC18F2480 PIC18F2510 PIC18F2515 PIC18F2520 PIC18F2525 PIC18F2550 PIC18F2580 PIC18F2585 PIC18F2610 PIC18F2620 PIC18F2680 PIC18F4220 PIC18F4320 PIC18F4331 PIC18F4410 PIC18F4420 PIC18F4431 PIC18F4450 PIC18F4455 PIC18F4480 PIC18F4510 PIC18F4515 PIC18F4520 PIC18F4525 PIC18F4550 PIC18F4580 PIC18F4585 PIC18F4610 PIC18F4620 PIC18F4680 PIC18F6520* PIC18F6620* PIC18F6720* PIC18F8520* PIC18F6527 PIC18F6622 PIC18F6627 PIC18F6722 PIC18F8527 PIC18F8622 PIC18F8627 PIC18F8722 PIC18F24J10 PIC18F25J10 PIC18F44J10 PIC18F45J10 PIC18F65J10 PIC18F65J15 PIC18F66J10 PIC18F66J15 PIC18F66J60* PIC18F66J65* PIC18F67J60* PIC18F85J10 PIC18F85J15 PIC18F86J10 PIC18F86J15 PIC18F86J60* PIC18F86J65* PIC18F87J60* PIC18F96J60* PIC18F96J65* PIC18F97J60* PIC24FJ64GA006* PIC24FJ64GA008* PIC24FJ64GA010* PIC24FJ96GA006* PIC24FJ96GA008* PIC24FJ96GA010* PIC24FJ128GA006* PIC24FJ128GA008* PIC24FJ128GA010* 2. Operating System Support List This tool has been tested under the following operating systems: > Significantly faster programming times for PIC18F > Verify on Write can be turned off > Verify and Blank Check will stop on the first error, and report > Begin programming on PICkit 2 button. > Separate enables for Program Memory and Data Memory > Target VDD support may be set to > Selectable programming speed for heavily loaded ICSP lines > Pop-up with memory address on program memory and data memory > Menu settings are remembered the next time the application is The following programmer functions will always operate on all regions of device memory, regardless of memory region select For devices with EEPROM Data Memory, the checkboxes will affect the following programmer functions: Programmer -> Read (including Read & Export button) Programmer -> Write (including Import & Write button) The regions affected are as follows: Program Checkbox: EE Data Checkbox: Read/Write/Verify: [X] [ ] Program Memory, UserIDs, *NOTE that region selections may not work properly if code protect, data protect, or write protects are presently active in the device. Program Memory and EEPROM Data editing: By default, program memory and EEPROM data may be edited in the To disable this feature, edit the INI file C:\Program Files\Microchip\PICkit 2 v2\PICkit2.ini (Created when the application is first run) Change the "EDIT" parameter to "N": EDIT: N Please email with any questions. (please look at our rules and privacy policy) |
