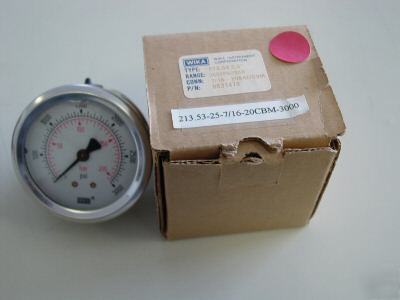

Type:  213.53 2.5"  23X.53 All Stainless Steel Construction Industrial Series Liquid Fillable • Type 23X.53 Suitable for corrosive environments compatible with 316 stainless steel wetted parts, dry and liquid fillable case, where vibration and/or pressure pulsation occur in liquid or gaseous media which will not obstruct the pressure system. 2", 2½" and 4" (50, 63 and 100 mm) 4" ± 1.0% of span (ASME B40.1 Grade 1A) Vacuum / Compound to 30"HG / 0 / 200 PSI Pressure from 15 PSI to 15,000 PSI or other equivalent units of pressure or vacuum 2" & 2½" Steady: 3/4 of full scale value Fluctuating: 2/3 of full scale value Fluctuating: 0.9 x full scale value Short time: 1.3 x full scale value Ambient: -40°F to 140°F (-40°C to 60°C) Additional error when temperature changes from reference temperature of 68°F (20°C) +0.4% for every 18°F (10°C) rising or falling. Percentage of span. 1/4" or 1/2" NPT limited to wrench flat area 30"Hg (Vac) to 1000 PSI C-type - 2" & 2½" 30"Hg (Vac) to 1500 PSI C-type - 4" 1500 PSI to 15,000 PSI helical type - 2" & 2½" 2000 PSI to 15,000 PSI helical type - 4" White aluminum with black lettering. 2½" with stop pin. Black aluminum, non-adjustable 304 stainless steel with vent plug and SS crimping ring. Weather resistant (NEMA 3 / IP 54) - dry case Weather tight (NEMA 4X / IP 65) - liquid-filled case PSI, PSI/BAR, PSI/KPA, PSI/KG/CM² (2½" CBM) Steel zinc plated u-clamp bracket (field installable) Stainless steel u-clamp bracket (field installable) Pressure compensating membrane window for filled gauges Stainless steel polished front flange (CBM or LBM only) Glycerine, silicone, or fluorolube case filling Special connections limited to wrench flat area Other pressure scales available: Externally adjustable red drag pointer (max. hand) Externally adjustable red mark pointer (set pointer) Note 1 Temperature Ranges (Liquid filled gauges) Glycerine: -4°F to 140°F (-20°C to 60°C) Silicone: -40°F to 140°F (-40°C to 60°C) All Items are donated to The Youth For Christ of Ottawa & Allegan Donation Center to help fund our ministry Youth For Christ of Ottawa & Allegan www.yfcoa.org (The Youth For Christ of Ottawa & Allegan Dontaion Center) www.ghyfc.org (Youth For Christ of Ottawa & Allegan) (please look at our rules and privacy policy) |
