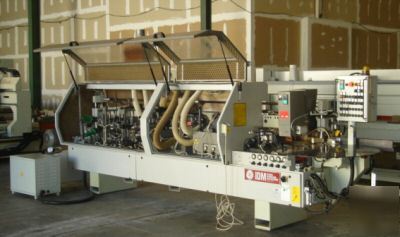

1996 IDM IDAMATIC EDGEBANDER (previously owned) More pictures at: http:// /CGI/machines.cgi?action=view&SISID=EB_10_1790 7 mm (1/4") Cap. Edgebanding thickness, 10 - 50 mm (2") panel thickness; automatic strip and coil feed magazine with 3 mm PVC guillotine (9" pack cap. For strips), QMS 8.8 lbs cap., underneath infeed magazine mounted, Teflon coated Hot Melt glue pot, 1" dia. Glue applicator roller, reversible rotation by flip of switch; pressure section with (1) large dia. (7 - 7/8") clutch controlled driver roller and (2) jump-action, pneumatic pressure idle rollers, horiz. Adj. with digital indicator. Workstations: Front and rear end trims (motors 0.75 HP - 14,400 RPM ea.), motors tilt 0-15º on horizontal plane; top and bottom rough trims (motors 0.75 HP - 14,400 RPM ea.), digital readout for easy setup; top and bottom fine trim/bevel and radius prepared for "quick change" of motors, for interchangeable 2nd set of bevel/radius-trim units); top and bottom scrapers for up to 5 mm thick PVC banding, pneumatic pressure control for scraping knives, digital readouts for easy setup, pneumatic exclusion from operator panel, overhead PVC chip filter unit eliminates PVC chips being sucked in by dust collector; top and bottom buffing (0.3 HP - 1,680 RPM motor ea.) units tilt 0-30º, top and bottom PVC edge reactivation unit, LEISTER hot air blower with temperature adjustment REGINA Feed chain with "anti-slip" 80 mm wide rubber pads, semi-automatic oil lubrication system for feed chain guides, (2) feed speeds 40 and 60 FPM, with 3 HP/4.5 HP drive. Complete with: Scraper and Hot air blower with "pneumatic positioning" controlled from operator panel, rotating operating controlpanel at eye level height, 9 KVA-240 Hz FUJI inverter with static brake. (please look at our rules and privacy policy) |
fran-berger@machine--tools.com (Fran Berger) for additional information. This email is used for forwarding to newsgroup user.
