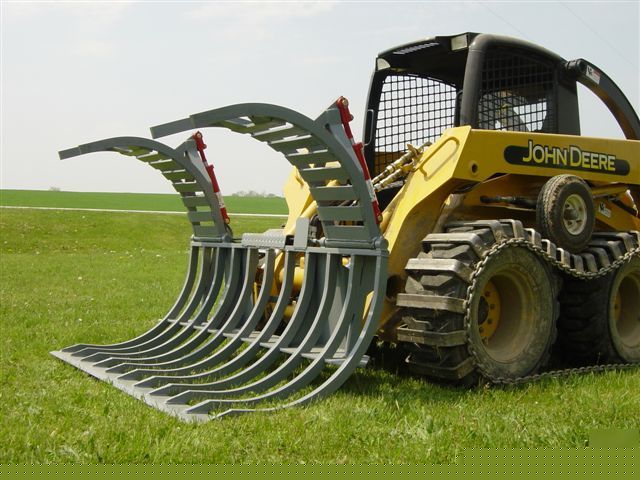

Offered is a new rock bucket with grapples. It is 72" wide with mounting plate for standard skid steer quick attach. This is a useful bucket for clearing debris as well as working in rock and mud. Since you can see through the back, grading work is much easier than with a conventional solid back bucket. Tine spacing is about 6.1" with 11 tines. All tines are 1" x 2" solid bar stock. Hardened 1/2"x6" cutting edge is used for long life. Grapple bars are 1" x 2" solid steel Grapple braces are all 1/2" x 2-1/2" solid steel. Spacing between the arms on each grapple is approximately 14". Opening height is 48" and opening depth 36". Cylinders are rated at 3000 PSI with a 2.5" bore and 8" stroke. Pins are 1" diameter. 1/4" hose rated at 5000 PSI is supplied. Quick connect couplers are NOT included. Questions?... I try to answer questions posted via E-bay within 24 hours. If you need quicker response to questions, please call 1-(***)-404-6978 during CST business hours. (please look at our rules and privacy policy) |
