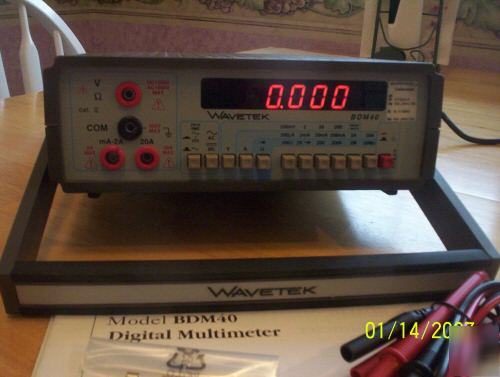

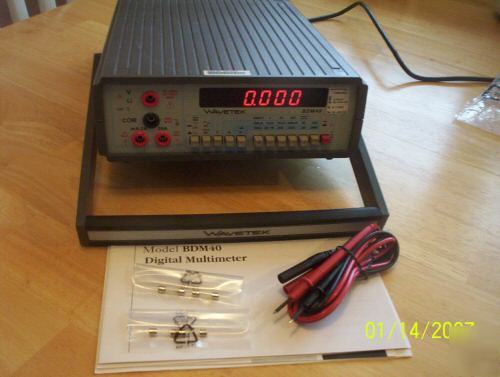

BDM40 Digital Bench Multimeter * True RMS, 4½ digit and 20,000-count multimeter * High accuracy, basic V DC 0.03% * Voltage to 1200 V DC, 1000 V AC * Resistance from 10 mΩ to 20 MΩ The Wavetek BDM40 is a 4½ digit display, true RMS, benchtop digital multimeter. Bench testing of voltage, ohms, and amps is easy and precise with Wavetek's new BDM40. This 4½ digit (20,000 counts) digital multimeter features true RMS (AC or AC+DC coupling) measurement capabilities to assure accuracy regardless of the types of waveforms. The BDM40 features high resolution at a low cost, which makes it ideal for production test, QA test, depot service, and university and school labs. Measurement capabilities include voltage from 10mV to 1200VDC and to 1000VAC, current from 10mA to 20A, and resistance from 10mW to 20MW. Diode test is provided on the 2kW range. The interlocking push buttons on the front panel provide easy selection of functions and ranges. Bold labels on the input jacks increase visibility and offer an added safety, as does the fully fused 2A jack. The BDM40's full 360º adjustable tilt bail and LED display maximize readability for most any bench application. Each meter comes with standard test leads, power cord, and operator's manual. A full line of optional probes, current clamps, and test leads is available to meet your application needs. (please look at our rules and privacy policy) |
