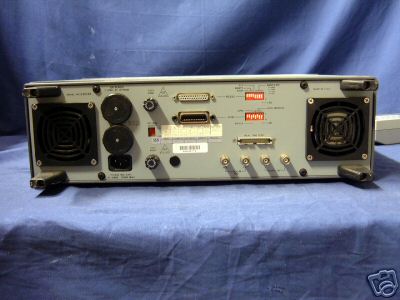

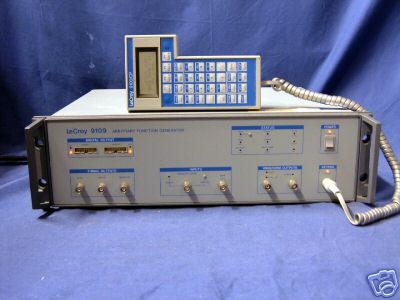

LeCROY 9109 ARBITRARY FUNCTION GENERATOR W/ 9100/CP The Model 9101 has been designed to operate from either a 115 V or 220V nominal power source. On the rear panel of the instrument, a switch permits user selection of either voltage. SPECIFICATIONS:* DC Accuracy is 1.0% of level or 1.0% of Full Scale amplitude or 20 mV (whichever is greater). * Resolution: 8 bits (256 levels). * Standard Functions (Waveforms - Frequency Resolution: 0.035% for all waveforms) * Sinewave - Frequency Range: 0.01 Hz to 25 MHz * Squarewave - Frequency Range: 0.01 to 100 MHz. * Triangle - Frequency Range: 0.01 Hz to 25 MHz. Linearity +/-1% * Pulse - Period: 40 nsec to 10 sec; Width - variable, 5 nsec to 10 sec; Orientation: selectable, positive or negative going. * Ramp - Period: 40 nsec to 100 sec; Linearity: +/- 1%; Orientation: selectable, positive or negative going. * DC - Generates a DC level, the value of which is the offset level. Accuracy is the greater of 1% or 20 mV. Everything included is mentioned above Please click here to email us or you can call us at (***)-655-0304 with your questions. Please include item number with your inquiry (please look at our rules and privacy policy) |
