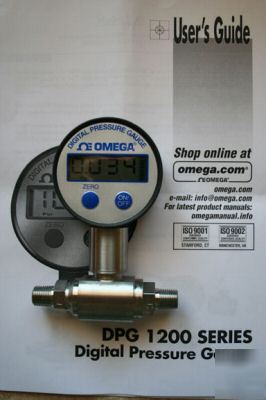

Digital Pressure Gauge for Differential Pressure The DPG1203 is a “true†media isolated, wet/wet differential digital pressure gauge designed to measure corrosive gases and liquids. It offers the accuracy of a solid state sensor with a low price that results from its proprietary ASIC design. Its solid state construction incorporates a micro-machined silicon pressure sensor (MEMS) and has no moving parts, ensuring a long life. Pressure is transferred from stainless steel diaphragms to the sensor through silicone oil. The large LCD digital display, 15 mm (0.6") high, eliminates the guesswork that occurs when taking readings with an analog dial gauge. Zeroing the display on the DPG1203 is done with the push of a button. The auto-off function will display the pressure readings for 3 minutes before the unit automatically shuts off, prolonging battery life. The DPG1203 operates on a long-life 9 V alkaline battery that is included with every unit. Maximum Differential Pressure: 3X differential pressure range from high side to low side Maximum Line Pressure: 10X differential pressure range or 1000 psi (whichever is lower) Operating Temperature Range: 0 to 50ºC (32 to 120ºF) Pressure Connection: 1/4-18 NPT male Battery: 9 V alkaline (included) Battery Life: 2 years in power-saving mode Case Dimensions: 67 mm (25/8") dia. Wetted Parts: 316L SS for all wetted parts Media Compatibility: All corrosive media compatible with 316L stainless steel http:// /ppt/pptsc.asp?ref=DPG1203 (please look at our rules and privacy policy) |
