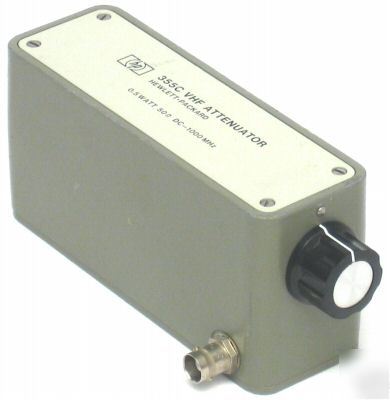

This HP 355C attenuator is in good condition and was recently removed from a working environment. The knob was replaced at some point and it does not have the 0-12 dB markings. The BNC connections are in good condition. We will include a User manual on CD. This item has a 5 day right of return. Attenuator sections are inserted and removed by cam-actuated microswitches which keep lead lengths short. This design minimizes stray capacitances and inductances, and keeps phase shift to a minimum. The HP Agilent 355C is a compact and rugged unit in which the component parts are rigidly positioned and well-shielded so that neither stray pickup nor signal leakage is a problem. It may be connected with the 355D in series to provide precision attenuation in 1 dB steps from 0 to 132 dB. Either terminal may be connected as input or output. * Frequency Range: dc to 1 GHz * Attenuation Range: 0 to 12 dB, 1 dB steps * Insertion Loss at 0 dB: 0.2 dB + 2.3 dB/GHz * Maximum SWR: 1.2 to 250 MHz, 1.3 to 500 MHz, 1.5 to 1 GHz * Repeatability Life: 0.03 dB maximum, 0.5 million cycles per section * Maximum RF Input Power: 0.5 W (average), 350 W (peak) * Connector Type: BNC female, optional Type-N female and TNC female The picture below may take a few moments to appear. (please look at our rules and privacy policy) |
