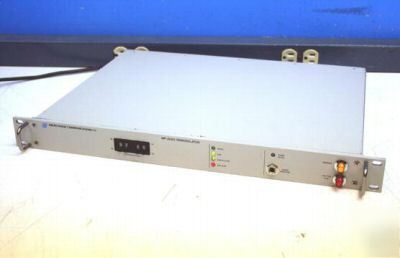

Micro Phase Communication MP-2030S FM Audio Single Demodulator (062006600260) This does not mean that the unit doesn’t work, only that we have not tested or checked it out. This may also mean that we are not knowledgeable in that specific item. Please call Brent Toll Free at 1-866-MHZ-ELEC (1-(***)-649-3532) if you have questions between the hours of 9:00 AM and 4:00 PM Monday thru Friday Pacific Time. The Item may vary from picture as manufacture may change model appearance. All information, including description, specifications and features are from a manufacturers data sheet or manual and are subject to change without notice. Meaning that all information included in the description, specifications and features What you see is what you get! If it doesn’t show it you probably won’t get it! I would like to take the time to thank From the bottom of my heart, thank you very much. You will never truly know how much it means to me. Micro Phase Communications MP-2030S FM Audio Single Demodulator * Electrical Requirements: 110 Volts AC, 60 Hz, 50 Watts * Frequency Select: 10kHz Steps (Thumbwheel Select) * Indicators: Audio Level, Carrier, Synthesiser Lock, AFC Alarm * Power: Front Panel Fuse, Front Panel Power Indicator * N-Type Connector: C-Band Input * BNC Input: 52 – 88MHz Input/Output * Power Entry: Power Cord Receptacle * Pluggable Term Block: Audio Outputs, Alarm Outputs * AC Power: 110 Volts AC, 60 Hz, 50 Watts * Size: 17†W x 1.75†H (slimline) * Mounting: 19†Rack Mount, Flush * Operating Temperature: 10° Celsius to 50° Celsius * Primary Input Frequency: 3700MHz to 4200MHz * Secondary Input Frequency: 52MHz to 88MHz * Frequency Synthesised: 10KHz steps * Image Rejection Ratio: Better than 57dB * Input Signal Level Range: -55dBm to -85dBm * Input Connector: Type N Female * LNA Power: Coax Center Conductor * Transponder Select: Factory Set * Expander: DBX 3:1. 2:1 or other * Audio Frequencies: 50Hz to 3.4kHz, 5kHz, 7.5kHz or 15kHz * Frequency Response: ±0.2db, 50 Hz to 15kHz (excludes expander) * DE-Emphasis: 0uS, 25uS, 75uS or other * Deviation: ±15kHz or ±75kHz (peak * Signal to Noise: Within 1.5dB of theoretical * Threshold: 2dB of extension (pll demodulation) * Audio Output Level: =18dBm (PPL) * Audio Level Adjust: Front Panel Adjust * Audio Output Impedence: 600 ohm, Active Balanced (no transformer) (please look at our rules and privacy policy) |
