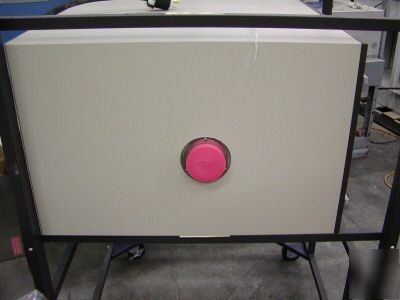

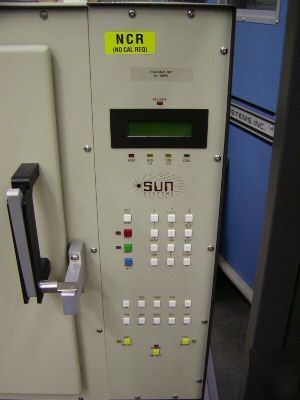

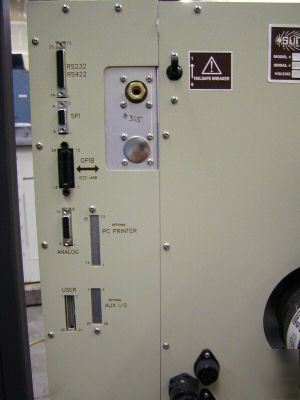

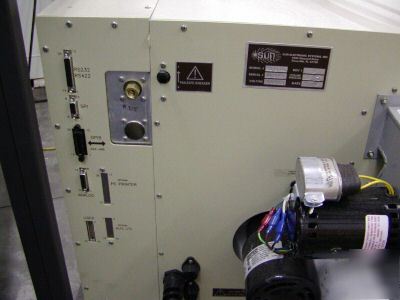

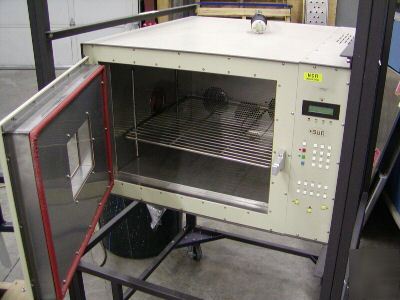

Sun Systems LN2 Cooled Environmental Chamber Date of Mfg: 7.25.2000 Excellent Condition. EC1x Specifications (CE Approved) Test Chamber Dim [In(Cm)] : 20.0 (50.8)W, 12.0 (30.5) H, 22.0 (55.9) D Overall Dim [In(Cm)] : 30.0 (76.2)W, 19.5 (49.5) H, 36.0 (91.4) D Heat/Cool Rate of Change : 0.5 Deg C / sec, (30 Deg C/min) Air Flow (CFM, Vertical) : 600 cu ft / min Additional Features: 3" left side access port, 8" x 5.5" viewing window, rolls on custom rack, one shelf. Controller Model TC10. Includes operations manual, RS-232 Inerface software disc. Temperature Setpoint Range : (LN2 Option; -183Deg C to +315 Deg C) Time at Temperature Range : 1.0 sec to 99 hrs 59 min 59 sec or Continuous Temperature Ramping Rate Control : Locally Controlled from 0.01 Deg C / min up to the Specified Heat/Cool rate of Change Programmable Set Temps and Times : Number of Set Temperatures and Times Limited only by Available Program Memory. Typically 100+ Segments Absolute Error (not including probe error) : +/- 0.25 Deg C Long Term Stability (per month) : +/- 0.2 Deg C Temperature Resolution : 0.02 Deg C Line Voltage Sensitivity (105-125 VAC) : +/- 0.1 Deg C Programmable Temperature Loop Control : 1 to 65535 FOR / NEXT Loop Executions for 10 Loops, Nesting Supported Temperature Control Technique : PID Algorithm / Pulse Width Modulated, Programmable from Keyboard or Remote Interfaces Option to control to chamber probe or user probe Local Operation : 26 Key Keypad / 2 line LCD Display Remote Operation : Built-in IEEE-488 / RS232 / RS422 Interfaces Additional I/O Capability : Electrically Isolated USER Temperature / Voltage Probe, 4 Channels of Analog Input and Analog Output, 16 Bit Address / 8 Bit Data Parallel Port, 56 KBit Auxiliary High Speed Serial Port, IEEE-488 to RS232 Transparent Mode, 5 Auxiliary Outputs, 8 Auxiliary Input Safety Features : Open/Short Probe Detection, Adjustable Over Temperature Thermostat, Software Upper Temperature Limit Convenience Features : Heat and Cool Enable/Disable Switches, Battery Backed Memory for Programs, Setup Menus for Probe CAL, Remote Interrupt Operation and Default Conditions for Alarms and Interfaces, Time of the Day Clock Ph: (***) 383-9400; Fax: (***) 383-9412 / jaclynlynn@machine--tools.com (please look at our rules and privacy policy) |
