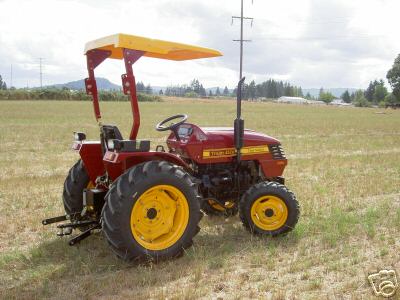

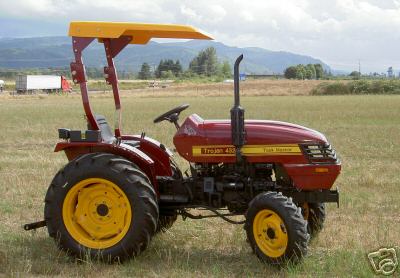

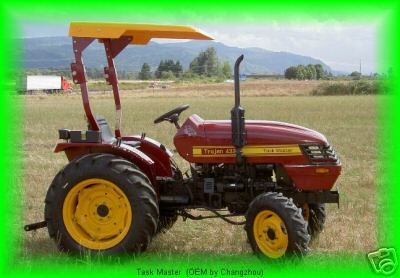

TM432E Tractor & Front End Loader LD250R Engine Gross 30 Hp PTO Hp (dynameter) 28 Hp* Engine 390 / 1.8 litter Compression 22:1 Bore & Stroke (mm) 90 x 95 Engine Displacement 110 cu.in. Engine speed 2400 rpm Fuel Capacity 8 gal. Battery Cold Cranking 575 amps Transmission (4+1x2x2) 16 forward4 reverse PTO (Live) 1 3/8" 6-spline PTO Speed 540/1000 rpm PTO Clutch Dry Disc 3-point Hitch ASAE Cat. 1 Lift Capacity 1360# Hydraulic Pumps 10 ml /r~6.3g/m @ 2200 rpm 16 ml /r~9.6g/m Wheel Base 68" Wheel Tread 42"~57" Turning Radius 102" Overall Length 134" Overall Width (minimum) 55" Ground Clearance 13.5" Height ROPS 89" Height Steering Wheel 59" Tractor Weight 3589 lbs Front Tire Size 6.5 x 16 Rear Tire Size (optional turf & R4) 11.2 x 24 AG Speed Range 0.24 – 20.3 mph Pictures shown are of completed tractor! Adjustable water drained operators seat. Padded steering wheel and shock seat suspension for comfortable operation. Accepts all standard category one 3-point implements. Hydraulic power steering provides for easy turning even with a full loader bucket. Standard 6 spine 1 3/8" Power Take Off (PTO) shaft with standard 540 RPM speed operated all standard PTO powered implements. Live hydraulic system provides full time power to 3-point implements, power steering, loader, etc. even when clutch is depressed. Foldable ROPS (Roll Over Protective Structure) for going under trees or in garage. Foot and hand throttle control for easy operation. Two-stage clutch allows you to stop the tractor and/or change gears and keeps a PTO operated implement under full power. 16 forward speeds assure maximum performance E-mail: SamuelCase@machine--tools.com with questions or Toll Free 1-(***)-876-7895 ext.312 We are Open Daily from 8am-5pm Pacific Time M-F ____________________________________________________ ______________________________________________________________ Please email SamuelCase@machine--tools.com or Toll Free 1-(***)-876-7895 ext.312 We are Open Daily from 8am-5pm Pacific Time M-F _________________________________________________ (please look at our rules and privacy policy) |
SamuelCase@machine--tools.com (Samuel Case) for additional information. This email is used for forwarding to newsgroup user.
