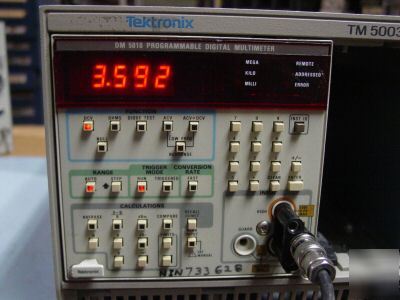

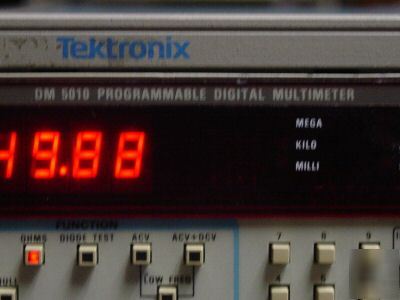

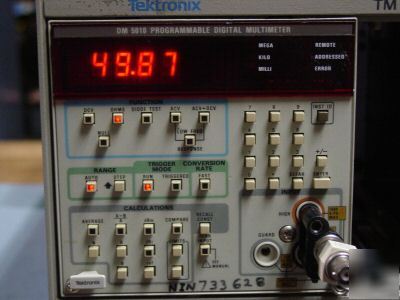

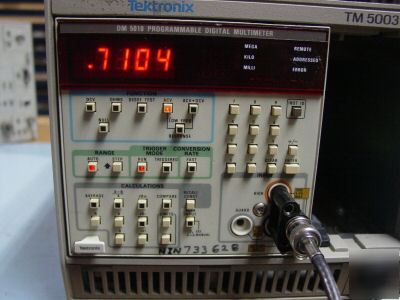

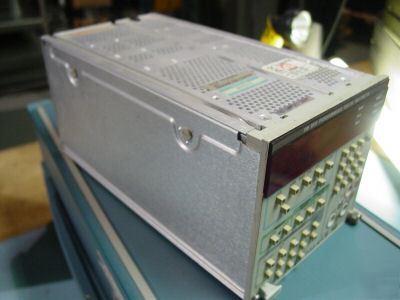

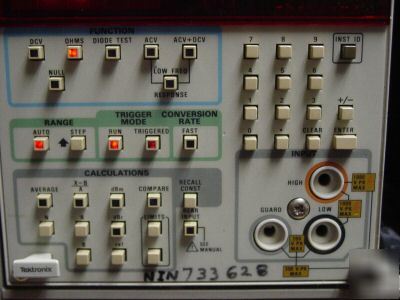

Tektronix DM5010 Programmable Digital Multimeter Designed for use in the TEK TM5000 Series Mainframes, the Tektronix DM 5010 Programmable Digital Multimeter measures dc voltage, resistance, true RMS ac voltage and true RMS ac+dc voltage. The internal math capability of the DM 5010 provides most of the calculations normally required for reducing raw measurements to decision-supporting information without controller assistance. These caculations include averaging (up to 19,999 measurements), offset and scaling, conversion to dBm or reference dB and Hi/Lo/Pass comparisons. User-selectable constants required for calculations may be supplied either through the front-panel keypad or via the GPIB. The internal math capability of the DM5010 permits such specialized measurements as: ac or dc current measurements, through the use of an external shunt resistor and a scaling factor equal to the ohmic value of the resistor; comparison against a percent tolerance (as opposed to an absolute value tolerance) through the combined use of the scaling and Hi/Lo/Pass functions. The low voltage function (0.2 volt) ohms function allows in-circuit resistance measurements without turning on parallel diode and transistor junctions. A Diode Test function is provided for forward and reverse testing of diode and transistor junctions. DC Volts, Ohms, True RMS (ac or ac+dc) Comprehensive Math Functions: dB Calculations; Averaging; Offset; Scaling; Hi/Lo/Pass Note: Mainframe NOT part of the sale (please look at our rules and privacy policy) |
