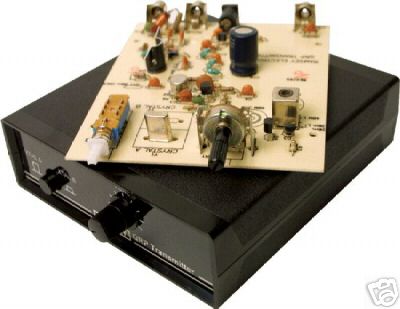

40 Meter 7 Mhz CW Transmitter Kit Pair this up with the 40 Meter receiver and you have a complete and very portable CW rig! * 4 Transistor circuit, oscillator, RF amp chain, and clean keying stage * RF output approx 1 Watt (.75W for QRP-20) * Pi-network output for good matching and harmonic suppression * Provision for two internal crystals, front panel switching * VCXO tuning, frequency can be tuned approx 7KHz around xtal freq. These nifty little CW transmitters are practical and economical take-along rigs for trips, camping, teaching or just amazing yourself with just what a watt will do! With exceptional manual of over 20 pages, the detailed step-by-step instructions guide you to a perfectly operating finished transmitter. The rigs use a standard crystal that is connected into a VCXO circuit - which means that you can tune around the crystal’s frequency by up to 20 KHz - thus giving you stable crystal control while still being able to tune around! A front panel switch lets you choose between two crystals, we include one, you can add another of your choice. A built-in T-R switch allows break-in operation. Of course, these transmitters interface perfectly with our QRP Mini-rig receivers and our CMOS CW keyer! And for the real ham, there’s plenty of room inside the included case for your own circuit modifications and experiments, these little rigs are often the heart of many QRP operator’s stations. Modify "till-the-cows-come-home," or just use ‘em as they are - these little rigs pack a lot of performance into an economical package. Runs on 12 VDC at 200 mA. ASSEMBLY AVAILABLE FOR $19.99! Please check my other listings! I carry components such as capacitor kits, semiconductors, tubes (NOS and New), hobby kits, and other electronic supplies. RetroTronics is your Vintage electronics supply source for Ham Radios, CB Radios, Antique Radios, Vintage Stereo equipment and more! (please look at our rules and privacy policy) |
