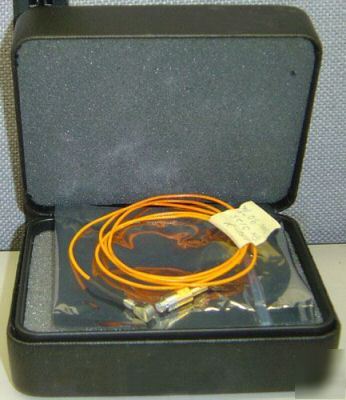

Dytran 3225F1 Miniature LIVM Accelerometer Comes with what you see in the pictures. If you don't see it, you probably wont get it. Specifications are from Dytran and may vary slightly due to upgrades, options or revisions this unit may or may not have. Link to Datasheet: Dytran 3225F1 Accelerometer (PDF) Dytran manufactures a broad range of accelerometers serving industries such as Aerospace, Automotive, Medical, Laboratory, Commercial and Industrial. Size (Dia. x Length Hex x Height): 0.25 x 0.43 x .150 inches Mounting Provision: Flat mounting surface for adhesive mount Connector, Radially Mounted [1]: 3-56 Jack Sensing Element Type: Quartz, planar shear Sensitivity [2][3]: 10.0, nom. mV/G Range F.S. for +/- 5 Volts Out: +/- 500 G's Frequency Response, +/- 10% [3]: 1.6 to 10,000 Hz Mounted Resonant Frequency, Nom.: 40 kHz Equivalent Electrical Noise Floor: .007 G's RMS Amplitude Non-Linearity (Zero Based Best-Fit St. Line Method): 2.0% F.S., Max. Transverse Sensitivity, Max.: 5% Strain Sensitivity: .0005 G's per microstrain @ 250/µ(sigma) Maximum Vibration: 400 G's, RMS Temperature Range: -60 to 250 °F Thermal Coefficient of Sensitivity: .03 %/°F Environmental Seal: Hermetic, TIG welded & glass-to-metal seal connector Supply Current/Compliance Voltage Range [4]: 2 to 20/+18 to +30 mA/Volts Output Impedance, Typ.: 100 Ohms Bias Voltage, +10 Volts Nom.: +9 to +11 VDC Discharge Time Constant, Nom.: 0.3 sec Output Signal Polarity for Acceleration Toward Top: Positive Case Grounding: Case is grounded to electrical power ground [1] Connector mates only with Dytran Cable Model 6003AXX (XX is length in feet) [2] Measured at 100 Hz, 1 G RMS per ISA RP32.2. [3] Actual Sensitivity is given on a calibration certificate traceable to NIST [4] Do not apply power to this device without current limiting, 20 mA max. To do so will detroy the integral IC amplifier. (please look at our rules and privacy policy) |
