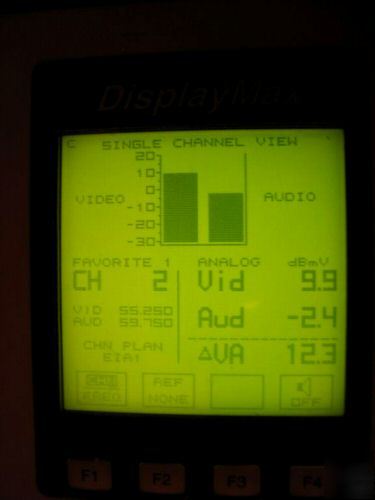

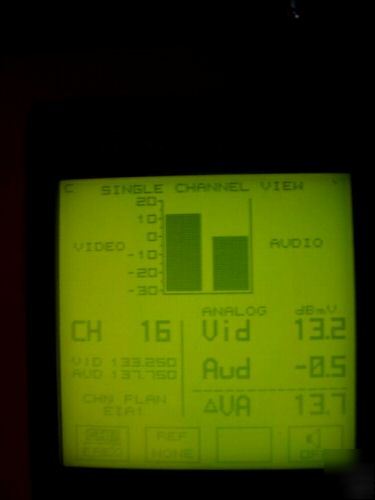

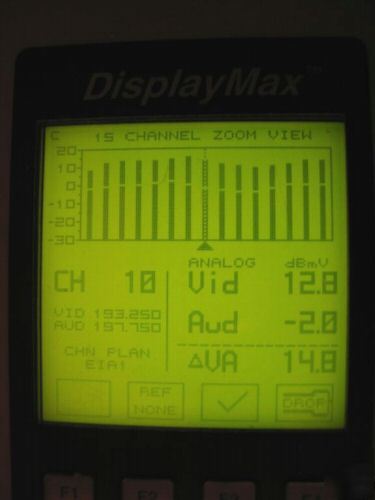

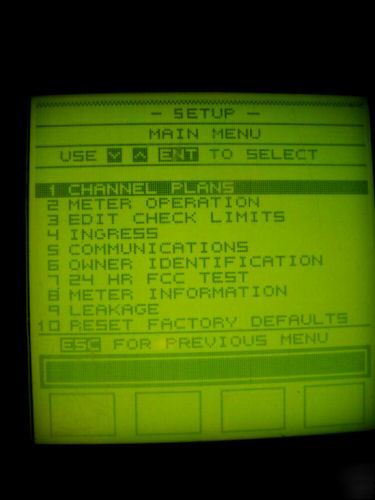

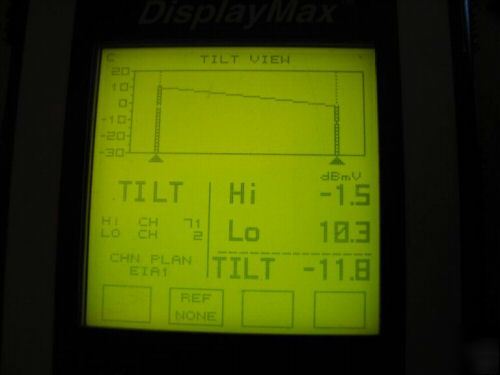

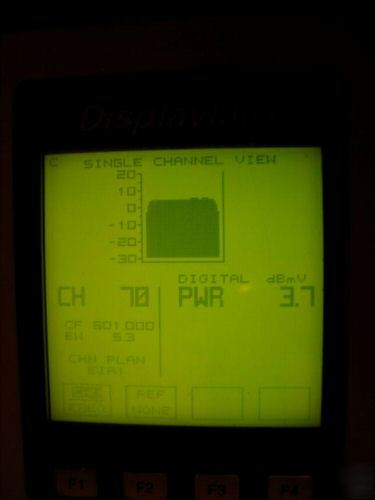

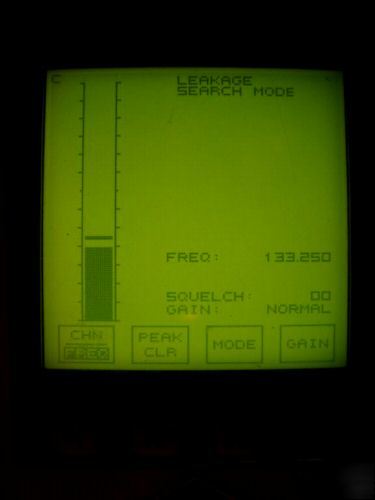

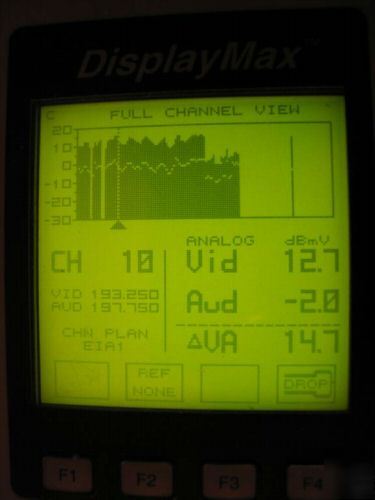

· Full coverage of analog and digital channels from 5 MHz to 872 MHz including sub-channels · Signal level measurement from –30 to +60 dBmV · Accuracy +/- 1 dB at 77 deg F, +/- 2 dB 0 to 120 deg F. · CLI leakage measurement 108 to 140 MHz, Resolution 25 KHz · Range of signal strength 5 to 5000 uV/M with audio tone · Ingress sweep of sub bands in 250 KHz steps · Digital channel power measurement accuracy +/- 1.5 dB · Digital modulation types supported QAM, QPSK, VSB and QPR · Automated testing (6 carriers/sec) with storage for 43 scans of 135 channels each · Carrier to noise (C/N), range 50 dB with +15 dB carrier. Accuracy +/- 2 dB · Hum 0 to 5%, filter 20-200 Hz · Tilt automatically calculated and displayed from designated channels · Full spectrum scan of all analog and digital channels on system, with pre-set check limits on six parameters · Zoom scan of any 15 consecutive channels · Extensive setup menus including 5 channel plans (NTSC, HRC, IRC, AIR and PAL) · Programmable light, LCD brightness, beep, speaker volume, measurement units, analog and digital offset, digital bandwidth, digital scan offset, check limits, time, date, user ID, serial port communications baud rate, etc. Also able to clone settings to other Sadelco meters. · Listening of audio on any analog channel including FM and sub-channels · Data recording, printing and downloading via RS-232 serial port. Download software is free from Sadelco.com. This meter is in perfect operating condition and is cosmetically about a 9 ½ out of 10 (there are a few minor scratches). The carrying case is in good condition with some normal wear on its outside corners. All of the other items are new. See the photos showing the meter in operation connected to a cable system (Comcast) that includes both analog and digital channels. These are actual displays produced by this meter, S/N DAC 10005. There are no camera tricks. What you see is what you get. A used Sadelco Display Max 800CLI signal level meter A new battery pack BAT07 (installed and charged) A new Sadelco ST1008 operator’s manual (not a copy) Rev. 08-31-2001 A new Sadelco T70 AC adapter/battery charger A new Sadelco ANT01 rubber duck antenna for CLI measurements A used Sadelco CASE05 padded nylon carrying case Other accessories for this meter are available from Sadelco. (please look at our rules and privacy policy) |
johnny.lawson@machine--tools.com (Johnny Lawson) for additional information. This email is used for forwarding to newsgroup user.
