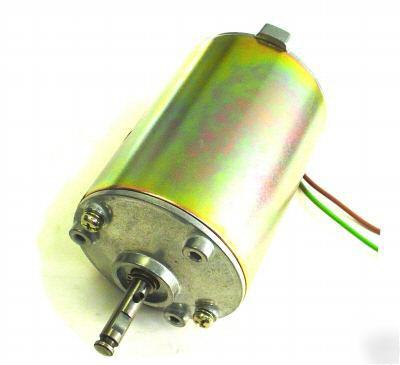

24v DC Electric Motor 10,000 hours 110W 2600 RPM 24vdc This multi-purpose 24vdc electric motor is specifically engineered to run a long life. The motor is designed to run in CCW direction looking at the shaft end. It is possible to run this motor in reverse but doing so will greatly reduce its life from its rated 10,000 hours down to only about 1,000 hours or less of life. Green wire is to connect the poisive and brown wire is to connect the negative. Motor features 3 holes ready to be tapped by the user. The multi-purpose shaft has a flat for set-screw mounting and groove and pin for other means of mounting. 10,000 hour long life is based on running the motor at its rated load and RPM. Overloading the motor may reduce its rated life time. The motor is rated at 110W at 26VDC at 2600RPM below ambient temperature of 80 deg C(176 F) with a reasonable bearing load. Rated torque at 2600RPM is 0.40 N-m(0.30 ft-lb or 3.6 in-lb). No-load speed is 3100RPM. It has a 8mm diameter shaft. Body length less shaft of the motor is 5 inch long. Diamter of the motor is 3 inch long. This very high quality motor is perfect for machinery, automotive, and home/garage project(s). Please also check out our 24v PWM controller if you desire to speed control this motor. * Allow local pickup on weekend.. * Manufacturer Warranty: This product has one year manufacturer warranty. (please look at our rules and privacy policy) |
