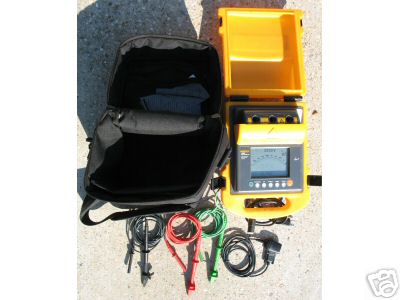

Digital insulation testing up to 5000 Volts The Fluke 1550 is a digital MegOhmMeter capable of testing switchgear, motors, generators, and cables at up to 5000 V dc. It can be used for a wide range of tests including simple spot checks, times tests and breakdown tests. Measurement storage and PC interface software make it ideal for preventative maintenance. Short circuit current Greater than 1 mA and less than 2 mA Insulation test voltage accuracy -0 % to + 10 % at 1 mA load current Induced ac mains current rejection 2 mA maximum Charging rate for capacitive load 5 seconds per µF Leakage current Range: 1 nA to 2 mA measurement Range: 0.01 µF t 15.00 µF Accuracy: ± (15 % rdg + 0.03 µF) Live circuit Indicator Range: 30 V to 600 V ac/dc, 50/60 Hz Timer 0 to 99 minutes; settable in 1 minute increments; indicated to within 1 second Ramp 0 % to 100 % of selected test voltage, or until breakdown (L x W x H) 170 mm x 242 mm x 330 mm Quicklink 1550B Software Requires a PC running Windows® 95, 98, Me, 2000, NT4.0 Complete specs can be found at support.fluke.com/find-sales/download/asset/1629685_f_w.pdf http://us.fluke.com/usen/products/Fluke+1550.htm?Catalog_name=FlukeUnitedStates (please look at our rules and privacy policy) |
Josefina.hays@machine--tools.com (Josefina Hays) for additional information. This email is used for forwarding to newsgroup user.
