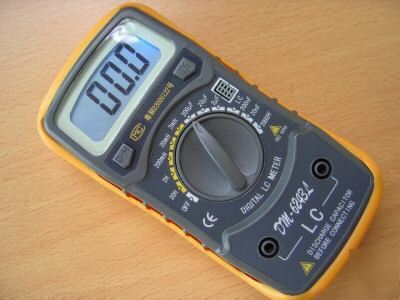

"Digital Inductance & Capacitance Lab Research, Manufacturing, Experiment, Home / DIY Hobbies Measurements " HIGH ACCURACY, RESOLUTION & RELIABILITY WITH WIDE MEASUREMENT RANGE !!! STYLIST LOOK, COMPACT & HANDY DESIGN GOOD . Wide Selectable Capacitance / Inductance Measuring Range : . Better for the following applications : - Capacitor / Inductance characteristic analysis; - Selection of desired capacitor / Coil; - Test Unknown capacitor / Coil ; - Finding the "matched" capacitors / Coils for circuit design . Employs LSI technology, auto turns zero, overflow display functions. . High Accuracy and resolution for precise measurments . Low power consumption & low battery indication . Protective case reduces to drop damage . 6 Capacitance Measuring Ranges : 1pF to 200uF Range 1 to 5 : 2000pF / 20nF / 200nF / 2uF / 20uF, +/-1.5%, + 5 digits; Range 6 : 200uF, +/-2.5% , + 5 digits; . 5 Inductance Measuring Ranges : Range 1 to 3 : 2mH / 20mH / 200mH, +/-2%, + 5digits; Range 4 to 5 : 2H / 20H, +/- 2.5%, + 5 digits; . Max Display : "1999", 3 1/2 Digits, Backlight control . Power : 9V DC battery ( 6F22 ) inside . Low battery indication on display . Size : 145 x 39 x 74 mm ( Includes protection case ) . Operating Temperature / Humidity : 0 -40C, RH<70% . Accessories : Instruction manual, test leads and protective case QUANTITY DISCOUNT AVAILABLE !!! If the item damaged upon received, please inform immediately by e-mail within 5 days. After the investigation, we decide to the replacement. Backlight color may vary which subjects to the availability - Regret not accept Personal Check; US local Postal Order. Don’t hesitate to ask if you have any inquiry. (please look at our rules and privacy policy) |
