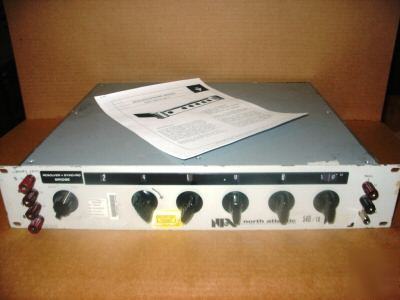

North Atlantic 540/10 Resolver/Synchro Bridge The 540/11 Resolver/Synchro Bridge provides the means for direct measurement of the angular shaft position of both three-wire synchros and four-wire resolvers. The 540/11's high input impedance coupled with the ability to measure synchros and resolvers, either as components, or as transducers in operating systems, allows usage in the lab, the line or ground checkout. • Accuracy: 2 arc-seconds • Resolution: 0.0001º • Frequency Range (rated accuracy) 400Hz to 1000Hz Useful Frequency Range: 400Hz to 10kHz • Input voltage: 150 V max; standard test voltages are 115/90 and 26/11.8 VAC • Input impedance @ 400Hz: (Resolver mode) 750 kohms, (Synchro mode) 500 kohms. http:// /images/images_spec/00001161.pdf IF THERE IS A PROBLEM WITH A GUARANTEED ITEM, WE MUST BE NOTIFIED WITHIN 48 HOURS OF RECEIPT. IF AN RMA# IS ISSUED, WE MUST RECEIVE THE ITEM BACK WITHIN 10 BUSINESS DAYS OR IT WILL BE RETURNED. SORRY, NO EXCEPTIONS. REMEMBER, if it isn't in the pictures, OR mentioned in the description, it ISN'T included (please look at our rules and privacy policy) |
