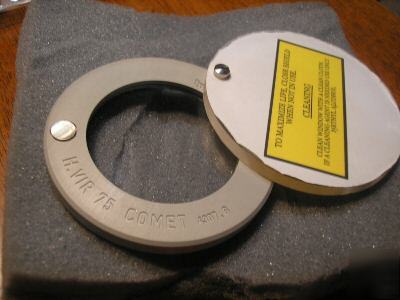

The H.VIR is a patented window enabling a safe visual and IR ( band 2 and 3 ) non destructive inspection of internal areas of protected closed cells. It is specially adapted to the inspection of major electrical components. Permanently fitted on switchboards, transformer panels, cell doors, it constantly permits an IR surveying without downtime. Many electric equipment manufacturs all over the world now include the H.VIR in their offer. The H.VIR window enables preventive inspections of critical areas without interrupting or disturbing the process. Without H.VIR, the IR inspection may be impossible or dangerous . In particular, it permits a safe inspection of high voltage equipment. The H.VIR has been widely distributed all over the world since 1995 and it passed different tests relating to explosion proof cells. The window shall be installed on a flat surface. The position has to be accurately settled according to the areas to be inspected. The used camera lens and the optical window diameter. H.VIR windows are supplied with directions for assembling, as well as all of the necessary parts (screws and o.ring). Carrying out a round aperture øB. Assembling is easy and can be carried out by most maintenance or electrical equipment support personnel. The windows do not need any particular maintenance procedure when they are used according to our recommendations. In case of superficial dirty marks, a cleaning procedure according to our indications should be applied. For sizes please visit: http:// /english/techinfo/index.html# Window Diameter: H VIR 75: 52 mm (please look at our rules and privacy policy) |
