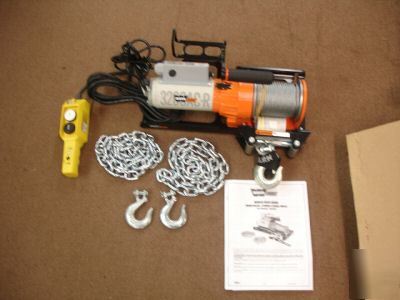

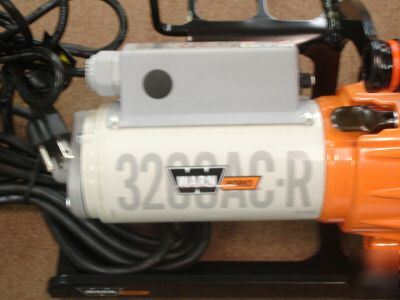

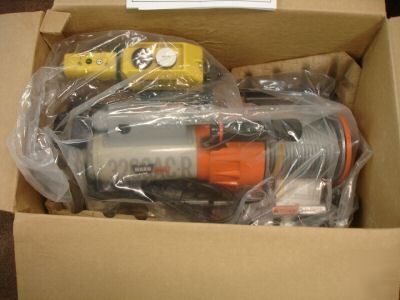

The redesigned WARN Works® 3200AC-R winch is pre-configured for quick and easy use. It comes attached to a carrier that features an integrated mounting plate, roller fairlead, carry handle, and a built-in dock to accommodate the hand-held remote. The 3200AC-R winch offers a 3,200 lb. single line It has a robust, all-metal gear housing and three-stage planetary gear design with 176:1 gear ratio and double insulation. The multi-directional clutch allows easy free spooling of the 7/32" wire rope. Comes with an 8-ft. electrical cord and 12-ft. lead with the remote. Part Number: 653200 (120v 60Hz) Pulling Capacity: 3200lbs. (1452 kg) Switch Type: Hard-wired, Double insulated 12' (3.7m Power: 120V-60Hz or 230V-50Hz Single Phase AC Clutch: Lever - Multi-directional Brake: Dynamic and mechanical braking Wire Rope: 7/32" x 55' (16.8 m) Drum Diameter: 2.375" (6.03 cm) Hole Pattern: Integrated portable mounting plate Electrical Leads: 8' (2.4 m) 3-Prong cord (please look at our rules and privacy policy) |
