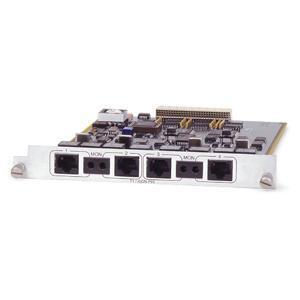

Find similar products at:MULTIPLEXORS, 1200185L3, 07-127657, 607565004889 Brand New Adtran ATLAS 800 SERIES QUAD T1/PRI MODULE The Quad T1/PRI module combines with other ATLAS components to implement a variety of WAN access products, including a T1 Bandwidth Manager, an ISDN Access Switch, and a Digital Access Cross-Connect System (DACS). The module provides four network ports, each of which can be independently configured to operate in T1 (DS-1 or DSX-1) or Primary Rate ISDN (PRI) modes. The Quad T1/PRI module can perform T1 to PRI conversion, translating between the robbed-bit signaling presented in a channelized T1 circuit and the D-channel signaling of a PRI circuit. When using the Quad T1/PRI module, ATLAS operates in a DACS mode supporting DS0 time slot interchange and DS0 grooming while preserving robbed bit signaling. ATLAS can be fully populated with Quad T1/PRI modules to support a pure DACSing application of 34 T1 circuits. Configuration of the Quad T1/PRI module can be accomplished through a variety of mechanisms, including Telnet or VT 100 Emulation. SNMP management is supported for alarm and event reporting. Extensive T1 circuit monitoring is standard with the Quad T1/PRI module, including the ability to detect, store, and report all performance parameters specified in AT&T Technical Reference 54016. The module detects and reports alarm conditions associated with the circuit, including Loss of Signal, Red Alarm, Blue Alarm, Yellow Alarm, and for PRI circuits, D-Channel Synchronization. The Quad T1/PRI module responds to standard loopback commands from the telephone company central office, both in-band commands and those sent through the Facilities Data Link. In addition, local and remote loopbacks (both line and payload) can be initiated from ATLAS. When testing the T1 circuit, the Quad T1/PRI module allows the user to select from a variety of test patterns, including all 1's, all 0's, as well as a standard QRSS pattern. When sending the QRSS pattern, the Quad T1/PRI module records and reports the results of the testing to the user. Click here for additional description Atlas 800 Series T1/PRI Module The Quad T1/PRI module combines with other ATLAS components to implement a variety of WAN access products, including a T1 Bandwidth Manager, an ISDN Access Switch, and a Digital Access Cross-connect System (DACS). The module provides four network ports, each of which can be independently configured to operate in T1 (DS-1 or DSX-1) or Primary Rate ISDN (PRI) modes. The Quad T1/PRI module can perform T1- to-PRI conversion, translating between the robbed-bit signaling presented in a channelized T1 circuit and the D-channel signaling of a PRI circuit. When using the Quad T1/PRI module, ATLAS operates in a DACS mode supporting DS0 time slot interchange and DS0 grooming while preserving robbed bit signaling. ATLAS can be fully populated with Quad T1/PRI modules to support a pure DACSing application of 34 T1 circuits. Configuration of the Quad T1/PRI module can be accomplished through a variety of mechanisms, including Telnet or VT100 emulation. SNMP management is supported for alarm and event reporting. Extensive T1 circuit monitoring is standard with the Quad T1/PRI module, including the ability to detect, store, and report all performance parameters specified in AT&T Technical Reference 54016. The module detects and reports alarm conditions associated with the circuit, including Loss of Signal, Red Alarm, Blue Alarm, Yellow Alarm, and for PRI circuits, D-Channel Synchronization. The Quad T1/PRI module responds to standard loopback commands from the telephone company central office - both in-band commands and those sent through the Facilities Data Link. In addition, local and remote loopbacks (both line and payload) can be initiated from ATLAS. When testing the T1 circuit, the Quad T1/PRI module allows the user to select from a variety of test patterns, including all 1s, all 0s, and a standard QRSS pattern. When sending the QRSS pattern, the Quad T1/PRI module records and reports the results of the testing to the user. * Configuration of the Quad T1/PRI module can be accomplished through a variety of mechanisms, including Telnet or VT100 emulation. SNMP management is supported for alarm and event reporting. * 32 F (0 C) to 113 F (45 C) Operating * -4 F (-20 C) to 158 F (70 C) Storage Up to 95% Non-condensing Relative Humidity 5.00" Height x 9.25" Width x 16.25" Depth * Four RJ-48 to RJ-48 cables (15 feet) * Two RJ-48 to RJ-48 crossover cables (15 feet) * Configurable for DS-1, PRI, or DSX-1 operation * AT&T 54016, 62411 and ANSI T1.403 compliant * D-Channel to robbed bit signaling conversion * Local and remote loopback support * Generates and detects QRSS test pattern * Compliant with Lucent 4ESS/5ESS, Nortel DMS100 and National ISDN * Occupies a single slot in the ATLAS 800 series chassis * LBO: 0, 7.5, 15, 22.5 dB; 266, 399, 533, 655 feet * System Timing: Network, Internal, External * T1 Signaling Methods:- E&M Immediate, E&M Wink, Ground Start, Loop Start, Feature Group D * Conversion:- Robbed Bit Signaling to ISDN D-Channel, AMI to B8ZS, D4 to ESF * Switch Compatibility: PRI Mode: Lucent 4ESS/5ESS, Nortel DMS-100, National ISDN * Switch Emulation: PRI Mode: Lucent 4ESS/5ESS, Nortel DMS-100, National ISDN * Test Patterns: QRSS, All 1s, All 0s * Alarms: Loss of Signal, Red, Yellow, Blue, D-Channel * Performance Monitoring: ES, BES, SES, SEFS, LOFC, CSS, UAS, LCV, PCV, LES * Signal Monitoring: AB signaling bits for all DS0s, individual monitor jacks for each port * Local Loopback - Line and Payload * Remote Loopback - Line and Payload * PRI Mode: Lucent 4ESS/5ESS, Nortel DMS-100, National ISDN 5 Year(s) bgcolor=#ffffff>5 Year(s) Bank-to-bank wire transfer $500+ Bank-to-bank wire transfer $500+ Please note that we do not accept personal or company international checks. Attention: APO deliveries can take up to 6 weeks. ORDERS FROM HAWAII, PUERTO RICO, ALASKA, GUAM, etc INTERNATIONAL CHECKS & POSTAL MONEY ORDERS There is a 30 day grace period for all international checks. It takes less time if you consider sending us a money order. It takes 5-7 business days for international postal money orders to clear. All orders placed in OH are subject to %7.5 sales tax. All Returned Merchandise must be accompanied by an RMA number and received by our warehouse within 14 days from the date the RMA number was sent to you. Returned Merchandise without an RMA number will be refused. Software and licenses can not be returned, no exceptions. This store is operated by Costupdate (please look at our rules and privacy policy) |
