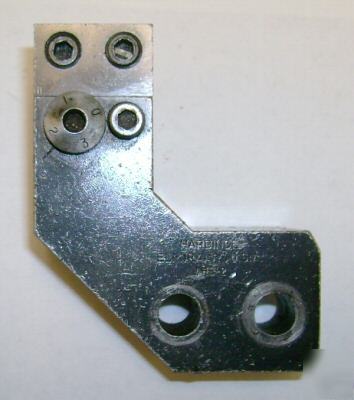

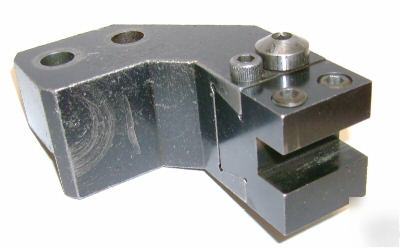

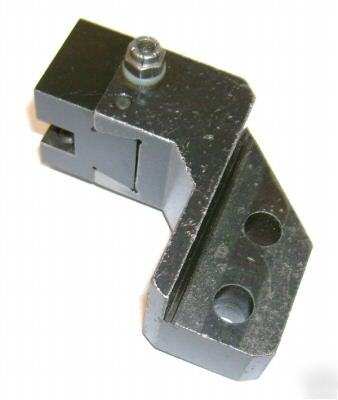

Ø Tool bit opening is .515†wide. Ø This tool is designed for close tolerance, large diameter, machining on the Hardinge AHC Automatic Chucking Machine. Ø It mounts directly to the turret of the chucker and is used to mount 3/8†standard square tool bits. Ø The graduations on the dial are a direct reading. Ø Each number on the dial represents .001†change on the diameter and each line represents .0002†change on the diameter. Ø It has a maximum travel of .025â€. Ø Outside Dimensions 2.98†x 3.625†x 1.56†Ø This tool holder is used but in very good condition. Ø The body has some slight nicks, dings, and scratches (see photos). Ø The fine adjustment mechanism has been checked and is working. (please look at our rules and privacy policy) |
