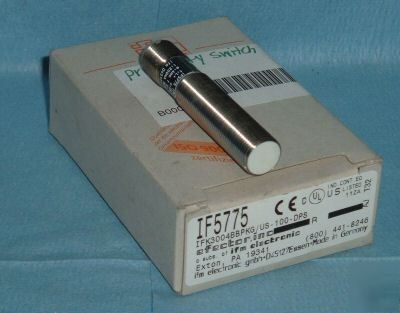

BOSCB0001493 Never Used!!!!!!!!!!!! Kept in tool crib as spare. Manufacture: Efector Part Number: IF5775 Long Part Number: IFK3004BBPKG/M/US-100-DPS Description: Sensor; Proximity Metal thread M12 x 1 Quick disconnect Increased sensing range gold-plated contacts Sensing range 4mm [f] flush mountable Operating voltage [V] 10...36 DC Current rating [mA] 200 Short-circuit protection Yes (non-latching) Reverse polarity protection yes overload protection yes Voltage drop [V] < 2.5 Current consumption [mA] < 15 (24 V) Real sensing range [mm] 4 ± 10 % Operating distance [mm] 0...3.25 Switch-point drift [% / Sr] -10...10 Hysteresis [% / Sr] 1...20 Switching frequency [Hz] 700 Correction factors mild steel = 1 / stainless steel approx. 0.7 / brass approx. 0.5 / Al approx. 0.5 / Cu approx. 0.4 Operating temperature [°C] -25...70 Protection IP 68 *) EMC EN 60947-5-2; EN 55011 class B Housing material housing: brass white bronze coated; active face: LCP uncolored Function display Switching status LED yellow Connection M12 connector; gold-plated contacts
