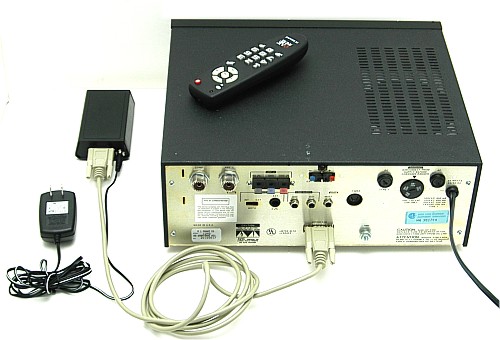

INFRARED REMOTE CONTROL SYSTEM For the DRAKE R8 / R8A / R8B Receiver The DRAKE R8 series are excellent communications receivers that have many functions, features and controls that until now had to be adjusted by using the dials, buttons and switches on the front of the receiver. We are proud to introduce this new complete wireless infrared remote control system that will allow you to adjust many of the same controls and also enter direct frequencies with the remote controller's numeric keys from across the room. Some of the options that can be controlled with the remote controller are not even adjustable from the front panel as this remote system uses the functions available for computer control using the RS232 interface on the rear of the receiver. REMOTE CONTROL FUNCTIONS for the DRAKE R8 R8A R8B Enter frequency directly to 10Hz Increase or decrease frequency using CH +/- in steps of 10Hz, 100Hz, 1kHz, 5kHz, 9kHz, 10kHz, 100kHz, and 1MHz Set up to five (5) User Tuning Steps - Useful for detuning frequencies by one half of filter bandwidth or use a very small frequency step to quickly zero-beat in SSB mode Recall last directly entered frequency Directly select memory channels Move up and down through memory channels using CH +/- Start and Stop programmed and memory scans. Move memory frequency and mode to VFO Write VFO frequency and mode to memory channel Select Synchronous Detection ON or OFF Toggle RF Attenuation ON or OFF Status LED that shows communications status, settable parameter entry, and clear key operation 1. Infrared Remote Control Interface 2. AC Adapter for the Remote Control Interface 4. Infrared Remote Controller with Large Buttons 5. 2 AAA Batteries for the Remote Controller The DRAKE R8 in the photos is NOT included. (please look at our rules and privacy policy) |
