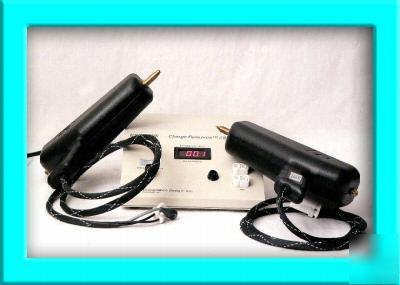

Compliance Design ESD 2000i Charge Reservoir Contact Discharge & Air Discharge According to our research, this system is engineered to test for compliance with ESD standards. The ESD-2000i is the solution to manufacturer's concerns about system level immunity. Utilization of the latest ESD technology, including ComplianceDesign's Charge Reservoir, has yielded subnanosecond rise times for contact discharge events in strict accordance with IEC 801-2, Issue 2.In addition, the ESD-2000i can easily produce either positive or negative discharges at voltages as high as 25kV in a variety of human models. TECHNICAL SPECIFICATIONS (IN CONFORMITY WITH IEC 801-2) * Discharge voltage V o (air-discharge): 2 -25 kV * Discharge voltage V o (with contact discharge adapter): 2 -9 kV * Discharge capacitor Cs: 150 pF ± 10%% * Discharge resistor Rd: 330 S2 ± 10%% * Operating modes: single/repetitive discharges * Test finger: conforms to IEC 801-2,1991 * Max. discharge energy: 50 mJ at 25 kV * Rise time (air discharge): <1 ns for voltages * Rise time (with contact adapter)0.7 -I ns * First current peak (with contact discharge adapter) at voltage set to: * Current pulse shape: conforms to IEC 801-2,1991 * Voltage indication accuracy (LED): ±5% It powers on and appears to be working. It is offered with the two cases as pictured. Winner has a 3 day right of inspection. Local Bay Area pickup available! We are located in Boulder Creek, California about 40 minutes from San Jose. Let's do the time-warp again ! (please look at our rules and privacy policy) |
