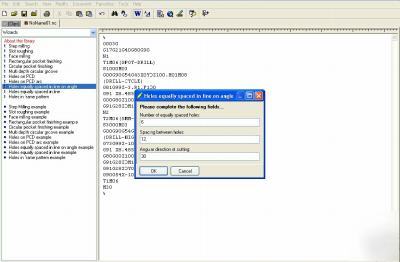

Are you writing cnc programs one character at a time? Do you have machines standing idle while they are being programmed? I have created a cnc programming system that will enable you to build a cnc program, rather like putting a jigsaw puzzle together. On the left hand side of the editor is a conversational list of machining cycles. You select the machining cycle that you require, with a single mouse click and the required code appears in the main editor window. With approximately ten mouse clicks, you will create a cnc program with 400 lines(blocks) of code, that can be downloaded to your cnc machine. Standard Milling Module (Includes G73 high speed peck drilling, G74 reverse tapping, G76 fine boring, G80 canned cycle cancel, G81 drilling cycle, G82 drill with dwell, G83 deep hole drilling, G84 tapping cycle, G85 boring cycle). Standard Turning Module (Includes G70 finishing cycle, G71 rough diameter, G72 rough face, G73 rough profile, G74 peck drilling cycle, G75 grooving cycle, G76 thread cutting cycle, G81 deep hole drilling, G83 peck drilling cycle, G84 tapping cycle). Turning Tool Library. Excellent aid to help programmer when choosing the correct tool and/or insert for an operation. Fanuc 0T (similar to standard turning module). Fanuc 0M (similar to standard milling module). Mitsubishi Meldas M3 / 500 Series. G Code Wizards. For Step milling, Slot milling, Face milling, Rectangular pocket finishing, Circular pocket finishing, Multi depth circular groove, Holes on PCD, Holes on PCD Arc, Holes equally spaced in line on angle, Holes equally spaced in line, Holes in frame pattern. All with example programs. If you can't run macro programs, this module is a necessity. You will of course be able to modify the code to suit your requirements. G codes and M codes are included for a quick and easy reference. You will also receive a utility module that will enable you to Add/Remove line numbers, apply mirror imaging and calculate angles. Free DNC program also available, to transfer your cnc programs to and from your cnc machine. Also, free simulation software to test your programs (not available for Heidenhain conversational). All of the cnc programming modules include finished example programs. System requirements:- Windows 95/98/ME/NT4/2000/XP 4MB of disc space. 32MB of RAM. You will receive your software as a download and other information by email. (please look at our rules and privacy policy) |
bertie-walker@machine--tools.com (Bertie Walker) for additional information. This email is used for forwarding to newsgroup user.
