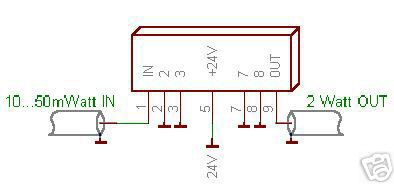

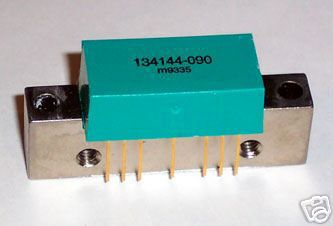

The Amplifier Module is useful when few milliwatt RF source (RF sweep generator, CW , AM , FM ,SSB ,wireless video camera , bug ets.) need to output up to 1.8 Watt RF Power .The module has 20db gain flat from 5 to about 700MHz. If you don't overdrive the amp and your input RF is clean , there is no need for Low Pass Filter. I found these modules extremely useful while tuning RF power stages , baluns and antennas cause the module withstands complete impedance mismatch such as open or shorted output while stay stable , oscillation free. Total power consumption : 24V * 0.38A = 9Watt Assuming 20% Class A efficiency there is 1.8 Watt harmonics free RF Power! The module was removed from working commercial equipment . The module must be mounted on heatsink . 24V power supply must be rated 0.4A or better. What's included: One 134144 module. The module was removed from working commercial equipment. The module must be mounted on heatsink . 24V power supply must be rated 0.3A or better. The module was never been soldered, We pulled it out from its socket. (please look at our rules and privacy policy) |
