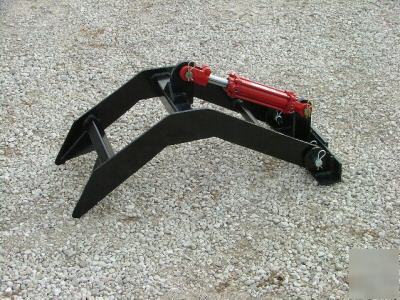

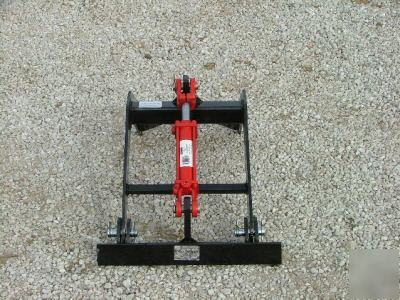

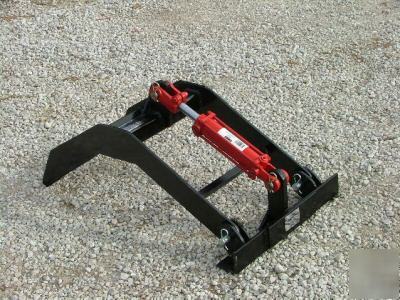

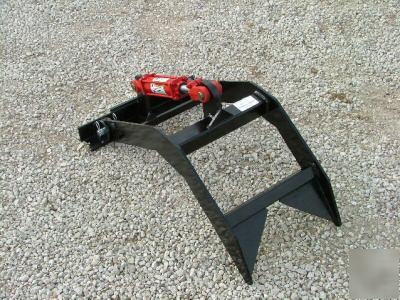

Brand NewThe LITTLE ARM Grapple! 2= 1" PINS (TO ATTACH BASE PLATE TO ARM) This is a brand new add on GRAPPLE ARM Kit attachment, we call it "THE LITTLE ARM". You can easily add to any skid steer, or tractor, or any unit that has aux. hydraulics. This is a super strong reinforced grappling arm. The base has six mounting holes that are ½†and is made of 3â€x3â€x3/8†by 22†wide angle. The sides of the arm are made of 3/8†solid plate. Also, you will notice that there is a 10" x 3" x 1/2" flat bar welded on to the middle back of the base plate for far more strength. The sides are held in place by TWO square tubes, the middle tube is a super strong over sized 2 ½ x ¼ “ With support tab. The arm is 15 3/4" wide!!! At the end of the “points†there are two huge supporting triangles to prevent the points from bending. The pins that hold the arm onto the base plate are 1†inch thick. The two tabs that hold the cylinder on are made of solid ¾ “ plate with 1†holes. You can bolt or weld this arm on your bucket with no problem. You could even drill holes in the back of the mounting plate to mount it on a pallet fork attachment. Some adapting may be required. Also all pins are 1". WE DON’T USE BOLTS!!!!!!!! All pins are quick disconnecting. So that if you wish not to have the arm on your bucket, just pull three pins and set the arm off to the side, while the mounting plate is still attached to the bucket. Is a brand new Tie-rod Cylinder. It is a 2500 psi rated continuous working pressure cylinder and is designed to take shock loads of up to 5000psi. It has two 3/8†ports!! It has 7854 lbs of down pressure under full psi, and fully extended. The grapple will come to you in gloss black. We have two different sizes, a 28" and a 32â€grapple. Measure from your cutting edge to your top lip on your bucket and if it is 28" or 32†we have your grapple!! They are both the same price, just note the size you need in the comment box when ordering. For a more heavy duty grapple please look at the “BIG ARM†that we also sell! We will never send out a second chance e-mail !! (please look at our rules and privacy policy) |
