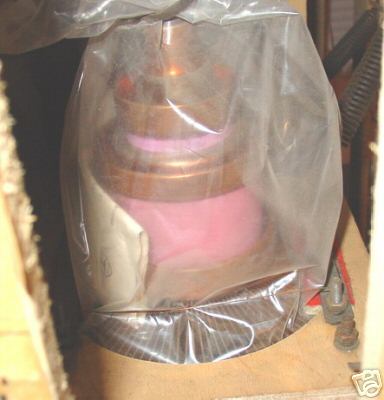

It hanging in original crate in many springs The GU-100B triode is used as an oscillator in stationary industrial RF heating generators and as a power amplifier in stationary industrial transmitters. Working position: upright with anode down. A - anode; C - grid; K1, K2 - cathode OPERATING ENVIRONMENTAL CONDITIONS Multiple impacts with a peak acceleration of m/s² Relative humidity at up to ±25 °C without moisture condensation, % Peak anode current (at filament voltage 5 V, anode voltage 0.5 kV, grid voltage 500 V, bias voltage -400 V), A, at least Negative cutoff voltage, absolute (at filament voltage 5 V, anode voltage 6 kV, anode current 0.1 A), V, at most Gain coefficient (at filament voltage 5 V, anode voltages 0.5 kV and 2 kV, anode current 3A) Output power in self-excitation mode, kW: at up to 10 MHz (at filament voltage 5 V, anode voltage 8 kV, grid bias voltage -350 V, anode current 1.6 A, grid current 0.4 A) at 10-150 MHz (at filament voltage 5 V, anode voltage 6 kV, grid bias voltage -350 V, anode current 1.35 A, grid current 0.32 A) Interelectrode capacitance in a grounded-cathode circuit, pF: Negative bias voltage, absolute value, V Filament current (peak value), A Grid current (DC component), A: at frequencies up to 10-150 MHz Envelope temperature (except for anode) at the hottest point, °C Averaged Anode-Grid Characteristic Curves: (please look at our rules and privacy policy) |
