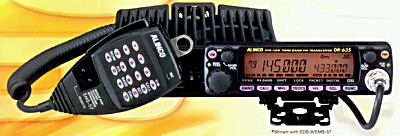

The Alinco DR-635T is a new twin band mobile transceiver operating on the 2 meter and 70 cm bands. It has transmit coverage from 144 to 147.995 and 430-449.995 MHz. Receive coverage is 108 to 173.995 and 335 to 480 MHz. This includes the VHF air band in AM mode and the FM broadcast band 87.5 to 108 MHz in Wide FM mode. 200 alphanumeric memories are available. Power output on VHF is 50/20/5 watts and UHF is 35/20/5 watts. Dual band receiver with V/V, U/U, V/U and U/V capability. Yes, cross-band repeat is supported! The large, easy-to-read three color LCD shows status icons and alphanumeric tags. CTCSS & DCS encode/decode is included plus 4 different tone bursts. Other features include: auto power off, time out timer, tone burst, scan, channel lock-out, dimmer, VFO auto program, theft alarm function, narrow FM, power supply voltage display and remotable head. A fan on the rear panel insures cool operation during transmit. The front panel is remotable via the optional EDS-9 separation kit. The advanced 10F3 digital mode with speech compression technology is available via the optional EJ-47U board * VHF/UHF full duplex operation includes V/U and U/V modes. * Cross-band repeater function (where permitted: standard on DR-635T) * H/M/L power output settings- VHF: 50/25/5W UHF: 35/20/5W * Large 6 character alphanumeric display * Selectable display color illumination (Blue, Violet or amber) * Internal duplexer - single antenna connector * Removable control head can be remotely mounted or allow transceiver to be inverted for optimal speaker placement * Expanded receive range includes FM broadcast band (WFM) * Power supply voltage display * Optional 1200 and 9600 bps packet operation with optional EJ-50U * Digital voice communications with optional EJ-47U * Optional illuminated DTMF EMS-57 microphone (included with DR-635T) allows direct VFO frequency entry and remote control of transceiver * CTCSS & DCS encode and decode plus four different tone bursts * Programmable VFO and Memory scan modes * AM Aircraft band reception (DR-635T only) * Temperature Compensated Crystal Oscillator * Ignition key activated power on/off feature Freely and separately selectable display colors for TX/RX/Stand-by! 16K0F3E(FM)/8K50F3E(Narrow FM)/F1E(digital voice)/F1D(9600bps)/F2D(1200bps)/A3E(RX only/AM) 5, 8.33, 10, 12.5, 15, 20, 25, 30, 50, 100 KHz VHF 80ch / UHF 80ch / Free-programmable 40ch / 1ch VHF CALL / 1ch UHF CALL 13.8V DC +/- 15% Negative ground Approx. 11A TX high / 700mA RX max. / 500mA RX squelched High VHF 50W / UHF 35W, Mid 20W, Low 5W(approx.) Variable Reactance Frequency Modulation +/- 5KHz (FM) +/- 2.5KHz (NFM) Double Conversion Superheterodyne Main band -14dBu(0.20uV) or better Sub band -12dBu(0.25uV) or better FM: -6dB: 12KHz or more, -60dB: 28KHz or less !!!!! We offer three years Warranty !!!!! · All item prices include GST. · While all care is taken, any errors or omissions in the item details is unintentional. · Dispatch of goods will be arranged through us. · Please allow up to 5 working days for delivery within Australia and 14 days internationally, although in most cases delivery is much quicker. · If problems do arise, please contact us , and we will endeavour to resolve any issues. (please look at our rules and privacy policy) |
