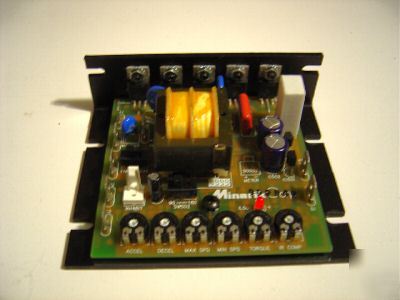

The MM23001C drive is a reliable and cost-effective solution for controlling your permanent magnet or shunt-wound DC motors in variable-speed applications. It uses SCR's to provide full-wave rectification of the AC line input. This dual voltage drive operates using 115VAC or 230VAC, 50/60Hz, to operate 90 or 180VDC SCR brush-type motors from 1/20 to 2HP. Packaged in a compact footprint, this user-friendly drive possesses diagnostics and options to accommodate user needs. Users can minimize wiring problems with the -Q option to make all wire connections to the screw terminals of a quick-connect removable terminal block. * MM footprint: An extremely compact size in an industry standard mounting footprint. * Speed range and regulation: 1% regulation over 60:1 speed range. * User adjustable calibration pots: IR compensation, min speed, max speed, current limit, acceleration and deceleration. * Diagnostic LEDs: LEDs for current limit status. * Stopping modes: Coast to minimum speed with inhibit terminals (N.O.),decelerate to min speed through pot circuit (N.C). External dynamic braking can be added. * Spade terminals: Easy to use, lower cost and able to fit in a smaller package. * Additional features: Dual voltage AC input and field voltage for shunt wound motors. * Options and accessories: -Q option includes quick disconnect terminal and power LED. DLC600 digital controller. PCM4 isolator card. 201-0024 inhibit plug with 18 inch leads. (please look at our rules and privacy policy) |
