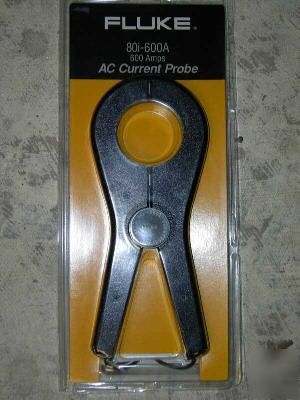

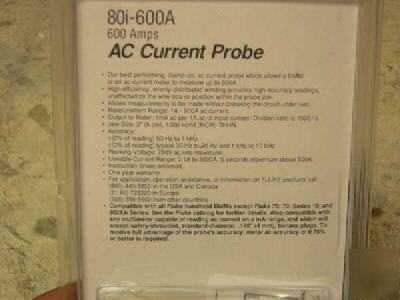

all package contents including books and cards These were purchased from a company that never used them they just sat in there store room until they decided to liquidate them because of no further need. our best performing, clamp-on ac current probe which allows a DMM or an AC current meter to measure up to 600A. High-efficiency, evenly-distributed winding provides high-accuracy readings, unaffected by the wire size or position within the probe jaw. Allows measurements to be made without breaking the circuit under test. Measurement Range: 1A - 600A AC current. Output to Meter: 1mA ac per 1A of input current (Division ratio is 1000:1). Jaw Size: 2" (5 cm), 1000kcmil (MCM) THHN. ±(2% of reading) 50 Hz to 1 kHz ±(3% of reading) typical 30 Hz to 50Hz and 1 kHz to 10 kHz. Working Voltage: 750V ac rms maximum. Useable Current Range: 0.1A to 2000A, 5 seconds maximum above 600A. Compatible with all Fluke handheld DMMs except Fluke 70, 73, Series 10, and 802XA Series. See the Fluke catalog for further details. Also compatible with any multimeter capable of reading ac current on a mA range, and which will accept safety-shrouded, standard-diameter, .160" (4 mm), banana plugs. To receive full advantage of the probe's accuracy, meter ac accuracy of 0.75% or better is required. More info at http://us.fluke.com/usen/products/AccessoryDetail.htm?cs_id=9612%28FlukeProducts%29&catalog_name=FlukeUnitedStates Fluke Manufacturers suggested U.S. list price 149.95 I work for a ISO 9000 compliant calibration lab If you would like a NIST traceable calibration certificate, I will open the box and calibrate the clamp meter for you with a one-two week lead time and a $60.00 fee per item. Calibration cost is non refundable. (please look at our rules and privacy policy) |
