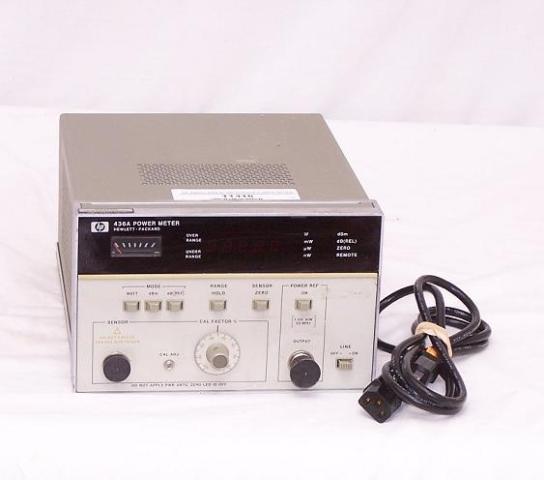

HP Agilent 436A RF/MICROWAVE POWER METER+Opt 022 click on images below to enlarge General purpose digital power meter intended for manual and automatic RF and microwave power measurements * Compatible with the entire series of 8480 power sensors * Measures either absolute or relative power * Displays absolute power in either watts or dBm, while relative power is displayed in dB * Frequency Range: 100kHz to 50GHz and 75 to 110GHz (depending on power sensor used) * Power Range: -70dBm to +44dBm (100pW to 25W)(sensor dependent) * Cal Factor: 16-position switch normalizes meter reading to account for calibration factor. Range 85% to 100& in 1% steps * Cal Adj: Front-panel adjustment provides capability to adjust gain in meter to match power sensor in use * Recorder Output: Proportional to indicated power with 1 volt corresponding to full scale and 0.316 volts to -5dB; 1 kohm output impedance, BNC connector * RF Blanking: Open collector TTL; low corresponds to blanking when auto-zero mode is engaged * Display: Digital display with four digits. 20% over-r * Option 022: Digital input/output, fully compatible with HP Interface Bus (HP-IB) * We offer a 100% Satisfaction Guarantee that the item is as described! * Questions will be answered to the best of our knowledge * PERSONAL CHECKS ARE NOT ACCEPTABLE. * Items can only be returned with prior authorization. Unauthorized returns will not be honored. * Failure to follow these guidelines will invalidate both the return and the guarantee! Powers Your Online Marketplace (please look at our rules and privacy policy) |
