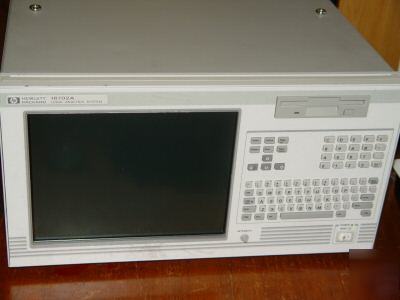

HP / Agilent 16700A Series Logic Analyzer with modules This is a web-enabled HP 16702A mainframe with 3 16557D analyzer cards (135MHz state, 500MHz timing) and 2 16610A emulation modules. Fully functional except front display. Must be used with external VGA monitor and standard PC keyboard and mouse (PS/2 connectors) or via networked Web interface. This makes it equivalent to 16700A model that has no built-in display. (Built-in display lights up but has a hard time displaying anything). HP 16700-series analyzers are fully functional HP-UX computers with 150MHz RISC CPU and all the connectivity and services (Ethernet, SCSI, multi-user, Web, FTP, print etc.) Folder /hplogic/etc contains a licence.dat file that apparently contains a "checked-out" license for Code Correlation software. However, this license shows up only if logged in as "root". It's up to you if you can make this license show up for non-root users. This unit has Option 3 ("Performance") installed, which includes max RAM (160MB) and max video RAM (4MB). This allows to drive large-size PC display. * 3 16557D analyzer cards (135MHz state, 500MHz timing) installed in master-expansion configuration - see pictures. * 2 16610A emulation modules installed * A CD with latest version of Agilent software for 16700 series analyzers (part number B3760-68743). Install it if you like, or use already installed older version. External SCSI CD-ROM drive would be needed for installation (CDROM drive not included). * User name and password with admin privileges will be provided in the package. Alternatively, you can always boot in a single-user mode to configure accounts. * cables or probes are not included * keyboard, mouse and monitor are not included This is a used item. Great cosmetic condition. Passed all the self-tests that can be found in the menus - please, see pictures below. Tests were run with external monitor (see screenshots), mouse and keyboard, no other cables attached. Computer works great, no problems whatsoever as far as I can tell. CMOS battery may need changing, so - no guarantees about battery condition. You can add other modules like this reasonably priced oscilloscope to obtain a great value from this instument. (The link to oscilloscope is only an example, I do not endorse it or any other item. It is up to you to determine compatibility and fitness of any item for a particular purpose). Don't miss this opportunity to get this very well-rounded piece of equipment for a very economical price! It certainly beats any other analyzer in this price range. Pictured is actual item for sale. Serial number is recorded. Please click on pictures for details. (please look at our rules and privacy policy) |
