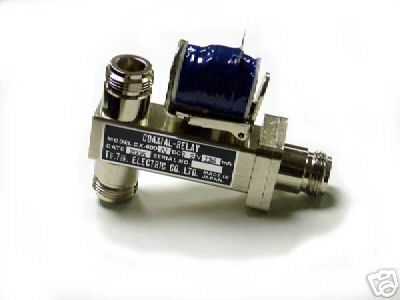

New Tohtsu CX-600N SPDT N type Coaxial Relay Pull in: 9 Vdc - 16.5 Vdc (12 Vdc Nominal) Current: 160 mA @ 12 Vdc at 20 degrees C Coil resistance: 75 Ohms +/-10% at 20 degrees C. Life Expectancy: 1,000,000. Operation min. Operational temperature: -55 to +70 degrees C. Cable connections: 3 N Type female connectors Frequency VSWR Isolation Ins.Loss IN PUT RF Power [MHz] [Max] [-dB(min)] [-dB(max)] [KW] 50 1.03 60 0.07 1.5 PEP (1.0CW) 150 1.10 48 0.10 1.3 PEP (1.0CW) Nominal Voltage Voltage Range Resistance Ohms 12Vdc 9Vdc - 16.5Vdc 75 Ohms +/-10% at 20 degrees C. 24Vdc 18Vdc - 26.5Vdc 300 Ohms +/-10% at 20 degrees C. (please look at our rules and privacy policy) |
