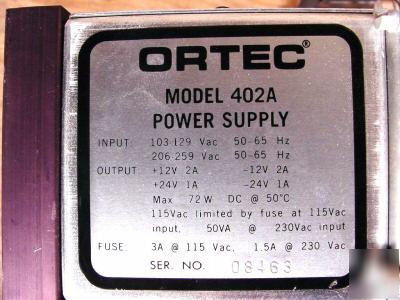

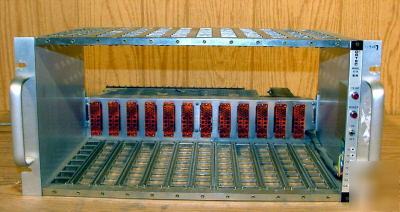

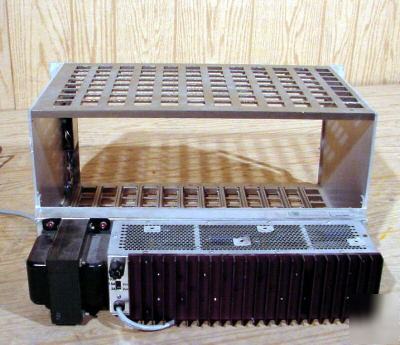

The Ortec (Model 401A) NIM BIN & 402A Power Supply System accommodates any equipment modules that have been manufactured to NIM standards as defined in DOE/ER-0457T. This bin is constructed of of grids cast frame to ensure support and unimpeded ventilation for the instruments operated in the enclosure. The adjustment-free module guides are superior to the requirements specified in DOE/ER-0457T. These hardened steel guides feature generous openings and, because of their highly-polished nickel plating, offer a low friction coefficient. Aluminum alloy side plates are precision-formed and protected with a painted finish. INSTALLED WIRING All connectors wired in parallel for +12 V, –12 V, +24 V, –24 V high-quality ground, power-return ground, and 117 V ac, in accordance with DOE/ER-0457T pin assignments. An interface connector is supplied as required by DOE/ER-0457T for connecting control and power supply. CONTROL PANEL A control panel with On/Off switch, power-indicating lamp, and thermal warning lamp for mating power supply. The thermal warning lamp is illuminated when the operating temperature approaches the design limit. Voltage test points are provided for convenient monitoring of the power supply outputs. CONSTRUCTION Aluminum alloy side plates with nickel-chromium-plated handles on front-panel mounting flanges. Top and bottom members are high-tensile steel rod weldments, nickel plated, containing module guides. Rear connector plate is steel, cadmium plated. ATTENTION The Ortec 401A Power Suppy provides ±12 V @ 2 A, and ±24 V @ 1 A. The Ortec NIM BIN combination is a low cost alternative for applications which do not require ±6 V. This ORTEC 401A NIM BIN and Ortec 402A Power Supply are in good tested condition. OUR PRICE IS ONLY $199.00 Animated Bar #4 UNIT POWERS ON AND IS IN GOOD CONDITION! PLEASE EMAIL OR CALL ROB @ 720.299.5640 (please look at our rules and privacy policy) |
