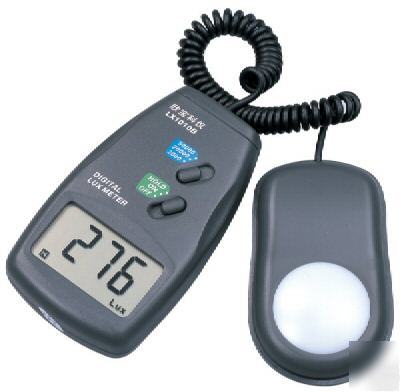

Universal (TOP2048) programmer Display: 3 1/2 digits 18mm LCD Measuring Range: 1Lux～50,000Lux Over-input: indication of “1†Accuracy: ±4% ±10digits(±5% ±10digits as over 10,000Lux) Temperature Characteristic: ±0.1%C Your purchase of this DIGITAL LUX METER marks a step forward for you into the field of precision measurements. Although this LUX METER is a complex and delicate instruments, its ruggedness will allow many years of use if proper operating techniques are developed. Please read the following instructions carefully and always keep this manual within easy reach. l LSI-circuit use provides high reliability and durability. l Permits a wide range of light measurements. l LCD display provides low power consumption. l Compact, light-weight, and excellent operation. l LCD display can clearly read out evening high ambient light. l Separate LIGHT SENSOR allows user take measurements at an optimum position. DISPLAY 18mm (0.7â€Â) LCD (Liquid Crystal Display). Over-input indication of “1†Operating temperature 0℃-50℃.(32℉-122℉) Operating Humidity less than 80%R.H. Dimension 118×70×29mm (4.6×2.7×1.1 inch). Weight 200g/ including battery. Power Supply 006P DC9V battery, Consumption current approx.2mA Standard Accessories Light sensor……………………………….1pc. Instruction manual……………………….1pc. NOTE Accuracy tested by a standard parallel light tungsten lamp of 2854。Ｋtemperature. Mercury Lamp………………………………………………..×1.1 Fluorescent Lamp………………………………………………. ×1.0 Incandescent light………………………………………………..×1.0 Daylight…………………………………………………………×1.0 As the DIGITAL LUX METER is a high accurate & sensitive instrument and its PHOTO SENSOR has special feature for the curve on low display reading area. Therefore if display indicates one or more leading zeros, user has to shift Range switch to the next lower range scale to improve resolution and accuracy. For example. User should select Range Switch to “×1†range., and the exact reading values is 182Lux. (3) Replace the battery (oo6P DC9V). This web is © Copyright ATI 2005-2006, All Rights Reserved. (please look at our rules and privacy policy) |
