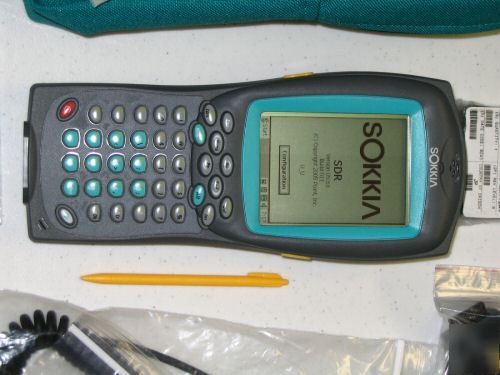

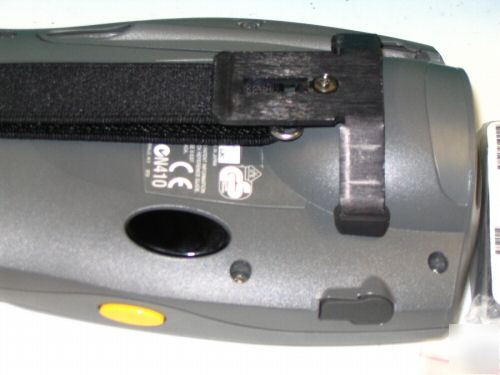

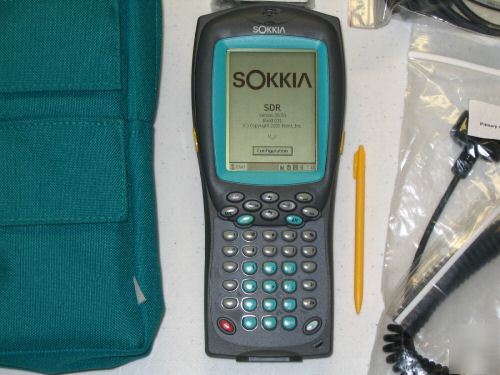

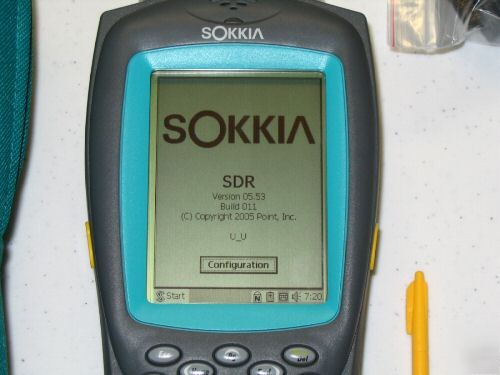

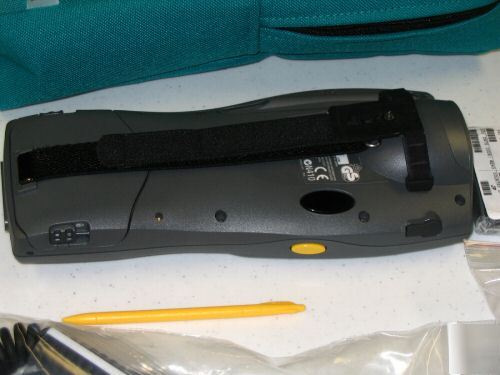

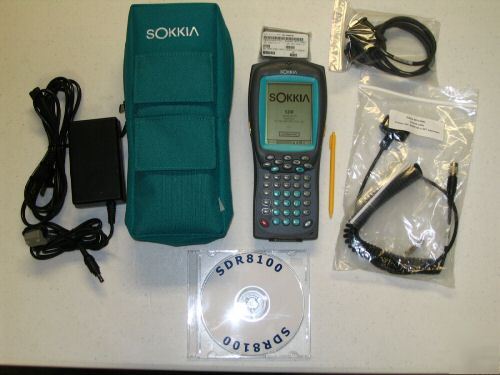

What I am selling is one very gently used Sokkia SDR8100 data collector (datalogger) with SDR Level 5 Software installed. Also included are: software & documentation CD, instrument cable, charging/communication cable, cordura soft case, charger, stylus and NiMH main battery. The data collector is in perfect like-new condition. This equipment has been thoroughly tested and is guaranteed to be ready to work when you receive it. SDR LEVEL 5: The SDR8100 with SDR Level 5 is the logical upgrade path for Surveyors who have used SDR33 and/or SDR31 data collectors in the past. In fact, if you have ever used an SDR33 data collector, you probably already know how to use the SDR8100. The SDR Level 5 software has the same logical menu structure as the SDR3X data collectors. The SDR8100 collects data from a wide variety of GPS receivers, digital levels, and Total Stations and provides extensive routines for coordinate geometry and road stakeout. If you want a modern data collector with the legenday quality, reliability and durability of the SDR33 to use with your GPS equipment, the SDR8100 may be perfect for you. In fact, if you use a Sokkia or Topcon Total Station and also use a Sokkia GPS receiver or plan to in the future, you can rest assured that the SDR8100 is the perfect data collector for your equipment. NEW! Version 5.55 now offers better support for bluetooth-enabled devices and logs NMEA data from any GPS receiver. SDR8100 HARDWARE: The SDR8100 meets the same rugged specifications for environmental sealing and drop damage resistance as the SDR33 and provides more than enough memory and battery power for a full day’s work in the field. Weighing in at only 14-ounces, it is lightweight, yet rugged for easy use in the field, on a rod, or mounted on a tripod. Surveyors who have previously used an SDR33 will appreciate the ability to operate the the data collector entirely with the keyboard as well as one-handed measurement and data collection with ergonomic triggers and one-button operation. The touch-screen display provides easy access to data, commands and graphical views and allows easy reading in any lighting conditions with backlight and multiple levels of contrast control. COMPATIBILITY: The SDR8100 includes an instrument cable which works with Sokkia and Topcon total stations right out of the box. With the addition of an adaptor cable (not included) the SDR8100 can be used with other total stations from a wide variety of manufacturers. The firmware in the SDR8100 has categories for: Total Station, Level, GPS, and GPS RTK. Within each category, the user can select from the following list of instruments, levels, and GPS receivers in addition to the "Manual" setting in each category for user-definable setup. The SDR8100 should also work well with the equivalent Thales or Ashtech GPS receiver. For example; the Sokkia GSR2300 is a re-badged Ashtech Z-Surveyor. Sokkia GSR1000, GSR 2200, GSR 2300 GSR 2400, GSR2600, GSR 2650, Radian, Radian IS, Axis3, and "Unknown" logs NMEA data from any GPS receiver (New in Version 5.55). TOTAL STATIONS, EDM'S, DIGITAL THEODOLITES: Sokkia: SET, NET2, SET 2-WAY, Motorized SET, SET5A, SDM3E, SDM3ER, SDM3F, SDM3FR, REDmini2 Pentax: PTSII/III, III/V/PCS, PTS-10 Zeiss: Elta 2/3, Elta 46R, Elta RL, Elta 50 Topcon: GTS/ET1/ET2, GTS-3, GTS300 (The adaptor cable for the older-model Topcons without RS-232 Serial communications is no longer available from Sokkia. A third-party solution is available but the cost is prohibitive) Wild: T1000, T1000+DI, T1600, T1600+DI, T2000, T2000+DI, T1010/1610, T1010/1610+DI, TCA1103, TC/TCM series Nikon: A-series, D-50 (The SDR8100 will not work with the older-model DTM-1 and DTM-5 total stations due to them not having RS-232 compliant communications. If your Nikon total station has a 5-pin data-out port, it will not work with the SDR8100. If it has a 6-pin data-out port, it should work with the SDR8100 and the required adaptor cable available from Sokkia) NA 2000/3000, SDL1/SDL2, ZEISS DiNi 10/20, SDL30 NEC 4121 MIPS Processor rated @ 131 MHz 16 MB of RAM and 16 MB of flash ROM. Additional storage via PC card 2 x RS 232 Serial ports IrDA 1.1; RS232 User Accessible Compact FlashProtected from the environment located behind the batteries Internal Type 2 PCMCIA slot for applications 216 mm x 95 mm x 46 mm (8.5 in x 3.75 in x 1.8 in) 1400 MAh rechargeable Lithium Ion battery. Backup battery for data protection. Battery power for more than 20 hours when recharged for 2.5 hours High contrast transflective monochrome backlit screen 320 x 240 pixels on portrait screen with 16 level gray scaleTouch screen interface Intelligent keyboard grouping for efficient data collectionBacklit keypad 40 key Alphanumeric IP54 (windblown dust and rain) 20° C to 50° C (4° F to 122° F) 25° C to 50° C (13° F to 122° F) Installed memory: 16 MB of RAM and 16 MB of flash ROM (Approx. 21,000 observations) Additional storage via PC card Installed software: SDR Level 5 Ver. 5.55 The data collector is: very gently used and in perfect, like-new condition. The instrument cable is: brand new (genuine Sokkia Cable for Sokkia Instruments) The main battery is: brand new (o.e.m., 1400 mAHr. Nickel Metal Hydryde (NiMH) The charger is: used (o.e.m. charger) The charging/communication cable is: used (o.e.m. cable) 1. Prolink software for uploading/downloading data from the SDR8100 to a PC. 2. Reference material for Basic, Advanced, and Roading operation. 3. Over 1,000 pages of documentation. 4. Over 60 megabytes of software and information you won't find anywhere else. Only the items shown in the pictures are included. Copyrights to all text and pictures shown in this listing are reserved by the seller. Please do not copy. Please check out my website: (please look at our rules and privacy policy) |
