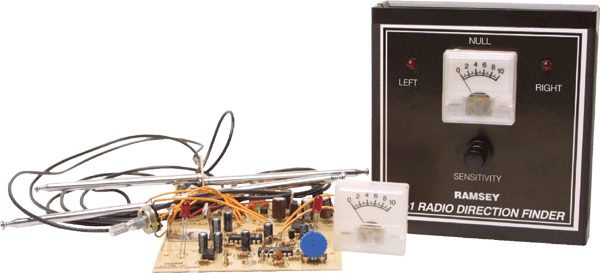

Click picture to see actual image size. Ramsey DF1C Foxhound Transmitter Direction Finder Kit Track Down Those Hidden Transmitters! * Pin diode switching of antennas coupled with filters determine direction of source signal and is indicated by a pair of LED's * Sensitive metering allows easy "zeroing-in" on transmitter! * Includes automatic T/R switch for easy use of transceivers * Operates on 9VDC internal battery or external 9-12VDC supply * Electronic kit, assembly required Maybe you were curious where the police transmitter was, where a boat was calling from, where is that mysterious repeater jammer or maybe you just would like to join the latest radio craze - "foxhunting". The Foxhound connects to any radio, through the speaker jack and antenna connector and will allow you to easily zero in on the exact direction of an unknown transmitter, be it aircraft, two-way radio, ham or even TV. The Foxhound uses a pair of telescopic whip antennas which are manually turned (by you!) until the sensitive meter indicates the lowest reading. This direction finder uses the latest technology for trouble-free, solid operation. The antennas are alternately switched on and off using PIN diodes. The outputs are then passed thru a high-Q audio filter and synchronously detected for phase shift. A pair of LEDs tell you in which direction you should rotate the antennas- to the right or left. We provide the telescopic whip antennas and ask you to provide a two foot long "boom" on which to mount them. For an ideal boom we recommend, and give all details on, using a short length of 1/2" PVC pipe available for about a dollar at any hardware store. Our matching case set nicely mounts on the boom handle for a very professional assembly. And, as an added feature, we ve included an automatic T-R switch! The T-R switch is ideal for handie-talkie usage, if you wish to transmit with your radio - go ahead, the Foxhound will sense your transmitter power and automatically switch itself out of the circuit while you talk. It doesn t get easier than this! Our well detailed and instructive step-by-step manual will carefully guide you to a kit that works first time - and you ll know how it works, too. Be the one with the answers, win those transmitter hunts, track down the jammers, you ll do it all with your Foxhound! Operates on internal 9 Volt battery or 12VDC, via a 2.1mm female power jack. Check our AC125 adapter if you need a quick and easy power supply. RAMSEY ELECTRONICS...For Over Three Decades! At Ramsey Electronics your satisfaction is guaranteed! Test Equipment carries a full 1-year warranty. All assembled kits carry a full 1-year warranty. Kits carry a 90-day warranty on parts. You may examine any kit for 10 days, and return it (unassembled!) for a full refund! If you have any questions before you place your order, or have any questions about an order that you have already placed, feel free to call us, toll free, (***)-446-2295. (please look at our rules and privacy policy) |
