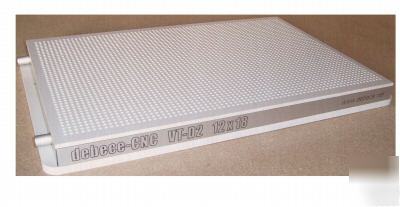

VACUUM TABLE VT-W2 12x18 (300mm x 450mm) This Vacuum table is designed to work with coolant or water. Connect the Vacuum Table to a Vacuum Cleaner or a Vacuum pump. With the use of a Vacuum table you achieve considerable advantages: -Reducing setup time by up to 70% -An alternative to magnetic tables -Solid hold down for thin and elastic parts -Setup for non-magnetic material -A Vacuum table enables the holding of foils Step hole dia 4mm (5/32â€) / 0.4mm (7/16â€) for locating dowel -The unused aria of the table does not have to be covered by 100% -Series production: one time setup with dowel pin, fast setup Well thought out engineering increases the stability and improved the airflow During development, we focused on stability. Also the airflow is most important for a vacuum table. Therefore we optimized the inner construction of the table. For milling and engraving just place the part on the table, and cover the not used space with the foil we sent you. For series production we recommend the use of the dowel pins. To cut out a piece (milling thru) use the “mill-thru mapâ€, other wise you we mill in the Vacuum table, and we don’t want to do that. The Mill thru map improves the adhesion, and protects the surface of the Vacuum table. This way you can cut thru the part without damaging the table. The Mill thru map is included in the delivery. Our Vacuum table can be joined with each other. You can join multiple tables, one after the other. This way you optimize the used area and safe costs if a vacuum table gets damaged. Our Vacuum tables find application for sign maker, engraver, carpenter, goldsmith, RC-Modeler or tool and die maker. Also for Electro technician for insulation milling or for photography studios (holding during illumination). Below a list of material that can be clamped very easy and very quick: Aluminum, Copper, Brass, Gold, Silver, Teflon, Delrin, POM, PVC, Plexiglas, LEXAN, Acrylics, Paper, Foils, MDF, Wood, Balsa, Foam board and Gator foam board. The vacuum chuck table is extremely well-suited for wet cooling. The table has a straightening reserve of up to 4mm. The size of the vacuum table should be slightly smaller than the travel course of the machine, so that straightening can be done right up to the edge. Thus, you get a precision of less than 0.05mm! The adhesive force is always proportional to the covered area and the vacuum suction capacity! -2x Sealing mat for the adapter Wet-Version: VT-W2 12†x 18†Domestic with Parcel Post, 2 – 7 Days International with Airmail Parcel Post, 4 – 10 Days For other countries please ask for quote You get a guarantee of 1 year on this table from the date of purchase Mechanical damages attributable to wrong operation are excluded from the guarantee. This provision is valid only if the vacuum table was not used, and it does not display other signs of usage. (please look at our rules and privacy policy) |
