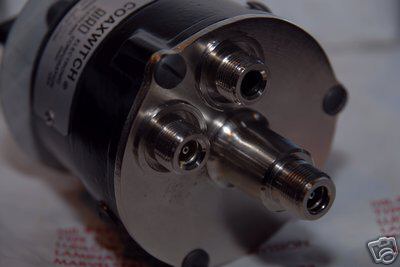

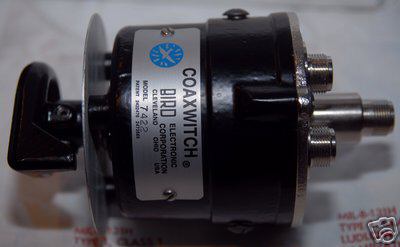

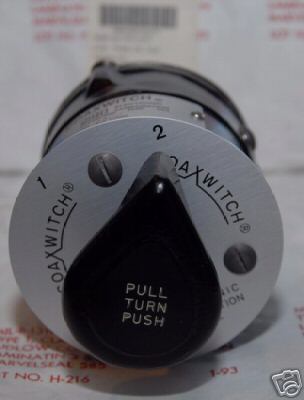

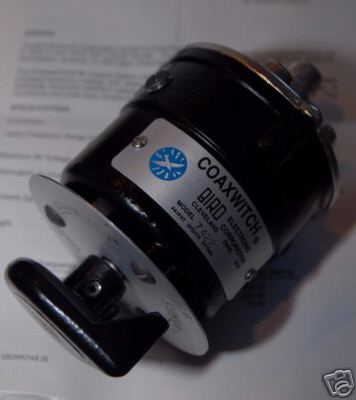

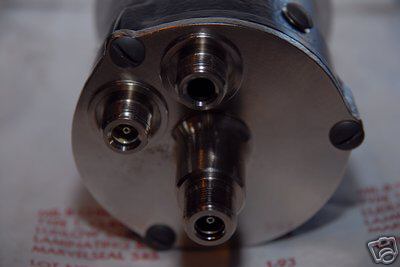

The Bird Electronic Corporation Series 74 COAXWITCH is a manually operated selector switch for use in 50/51.5 and 70/75 ohm coaxial circuits. The switch is designed for use in switching antenna, transmitters, receivers, or other gear using 50/70 ohm coaxial impedance. The COAXWITCH RF Coaxial Switch meets rigid MIL specifications. The unit is housed in a black anodized aluminium casting, with nickel plated brass Female N connectors and connector plate. A selectively hardened cadmium plated ground steel shaft is used for the switching operation. The connectors and shaft have neoprene seals, making the entire switch installation splash proof. Model 7422 2 position Coax Switch Useful Frequency Range 50 ohms : DC to 10 GHz Useful Frequency Range 75 ohms : DC to 1 GHz Maximum RF voltage : 500 volts RMS Attenuation to unused channel : 75 dB (cross talk) Ambient Operating Temperature : -60C to +65C http:// /products/product.aspx?id=256 http:// /products/pdfs/selector_chart.htm (please look at our rules and privacy policy) |
