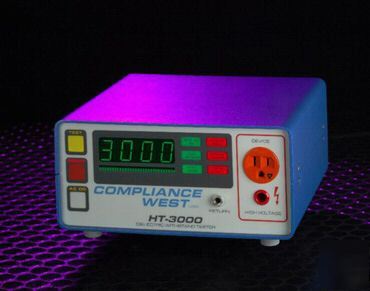

"Your One Stop Source for Sales & Calibration of Test & Measurement Equipiment" Our HT3000AC-1A is an AC only tester, with the ability to deliver up to 1A to the EUT. Leakage current limits can be set with the front panel knob from 50mA to 1A. Normal operation stops testing when a leakage current greater than the set amount or when a dielectric breakdown is encountered. If desired, testing can be set to continue to burn problem areas. Testing will continue until the design current limit of the tester is exceeded; at which time the output voltage will return to zero. Packaged in a 6U enclosure. Provided with test leads terminated in alligator clips and a calibration certificate; one year warranty on parts and labor. Output 0-3000Vac, set by front panel knob Leakage Current Limit 50mA-1000mA set by front panel knob Dielectric Breakdown Defeatable, by high frequency detection circuit Test Time Defeatable, 0-60 sec. by front panel knob GOODS: ALL our items are FACTORY NEW (please look at our rules and privacy policy) |
