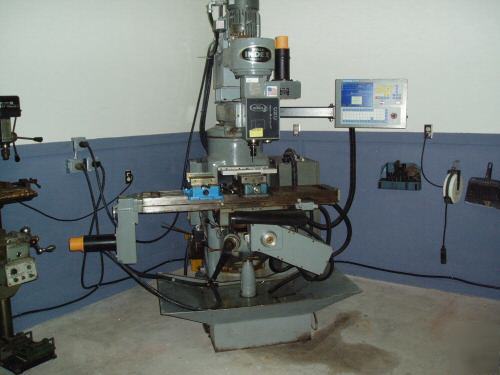

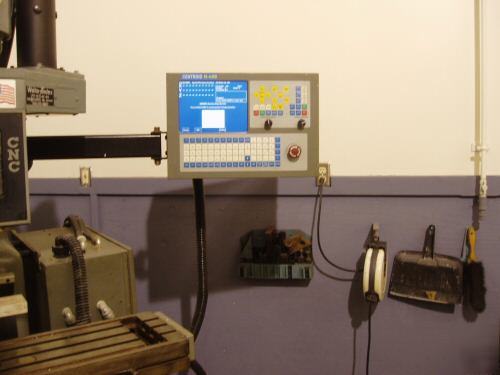

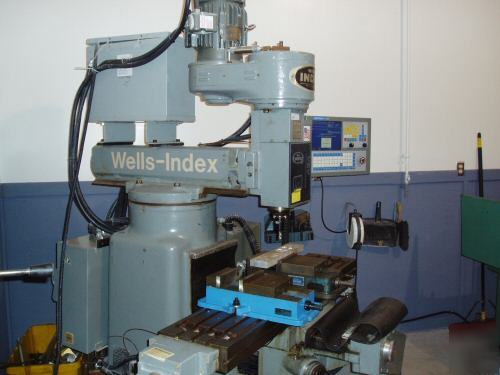

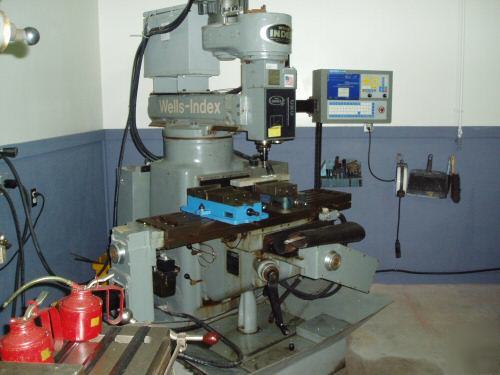

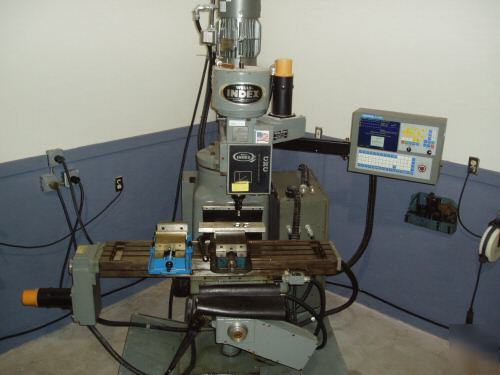

This mill will be an excellent addition to any machine shop. Machine is in very good condition. Square is good and ways are tight. Longitudinal (X) .......................................................................... 28" Cross (Y)..................................................................................... 11.8" Quill (Z) .......................................................................................5" Centroid M-400 CNC Control for milling machines • PC based 32bit DSP technology • 600 blocks/second processing • 640k standard memory (unlimited size option) • Unlimited file size eliminates DNC drip feed • RS-232 mouse parallel and LAN connections • “No pause†high speed 3D contouring • Full alphanumeric splash proof keyboard • Digital DC and AC servo drives and motors • 3 or 4 axis simultaneous control • Quadurature encoder interface • Least input increment of 0.001mm • Hold tolerance on high speed moves • Smart search/restart program anywhere • Icon and soft key based operating system • Manual feed mode (jog) incremental or • Sequence and N number search • Manual pulse generator (MPG) • Linear interpolation (4 axis simultaneously) (G1) • Circular interpolation (any plane) (G2 & G3) • Helical interpolation (any plane) (G2 & G3) • Conversational graphical G code editing • 3D tool path graphics (G code backplot) • program number = Dos legal file name • Sequence number N with 9 digits • Absolute/incremental programming (G90 & G91) • Inch/metric conversion (G20 & G21) • Circular interpolation planes (G17 – G19) • Coordinate system setting (G92) • Specifying the radius of an arc (R value) • Canned drilling cycles (G73,80,81,82,83,85,89) • Work coordinate shift (G54 – G59) • Reference point return (G28) • Return from reference point (G29) • 2nd reference point return • Local work coordinates (G52) • Machine work coordinates (G53) • 4th axis degrees minutes seconds or decimal point • Full 3D graphics (isometric & tri planar) • Pocket cycles (circular & rectangular) • Frame mill cycle (circular & rectangular) • Ramped plunges on canned cycles (any angle) • Subroutines for copy repeat rotate mirror with • Automatic angle calculator • Graphical math help for solving angles intersections tangents with past to event • Linear and polar input on same event M functions are programmable for special considerations. The following is a list of the predefined M codes supplied with the M-400 M01 Optional stop M92 Go to – home M03 Spindle CW M100 Wait for input M04 Spindle CCW M101 Wait for input M05 Spindle stop M102 Program start M06 Tool change M103 Start timer M08 Coolant on M105 Move to - limit M09 Coolant off M106 Move to + limit M11 Clamp off M108 Enable override M25 Z home M109 Disable override • Tool offset 200 pairs +/- 6 digits • Tool length compensation (G43 & G44) • Tool length compensation cancel (G49) • Tool radius compensation (G41 & G42) • Tool radius compensation cancel (G40) • Tool functions T0 – T200 Part Program Storage and Editing: • Program storage = available hard drive space • Full screen unlimited file size G code editor • Read/write to floppy drive • Save programs off-line via coms port • Rapid traverse feed rate override • Rapid traverse automatic accel/decel • Feedrate override 2 – 200% variable • Current position display (DRO) • Run time and parts counter • Spindle speed display (RPM) • Real time alarm message display Data Input/Output and Communication: • 1.44MB floppy disk drive PC compatible • Backup data and system files (menu driven) • Restore data and system files (menu driven) • PLC and system diagnostics • Motor temperature estimating (please look at our rules and privacy policy) |
