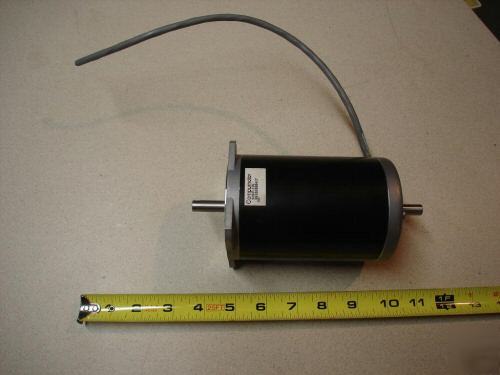

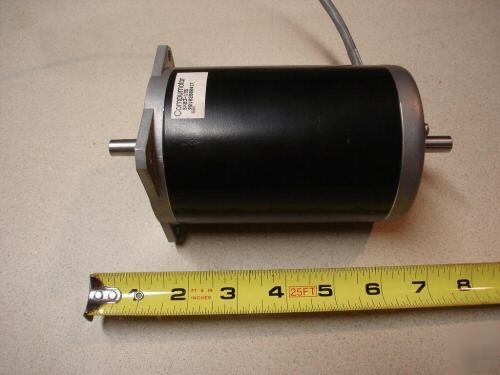

The motors are 1.8 degree (200 steps/rev). Max current in series is 3.47 amps (400 oz-in), parallel is 6 amps (343 oz-in). I cannot find the voltage rating, but the parker compumotor drives use 170v in conjuction with these motors. I am sure you know that you can drive stepper motors at much higher voltage than the nameplate rating, hence the 170v. The specs are still available from parker at parker, search for sx83. http:// /catalog/c67_74.pdf http:// /manuals/S-SX/SX/sx_ch6_h.pdf (please look at our rules and privacy policy) |
Chrisdudley@machine--tools.com (Chris Dudley) for additional information. This email is used for forwarding to newsgroup user.
