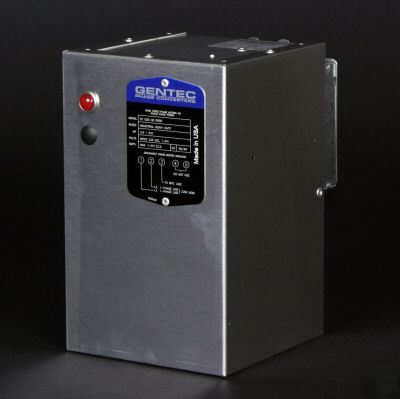

1/3 - 3/4HP Static Phase Converter * Aggressive Capacitive Starting * Flexible mounting / Easy Installation * Heavy Duty and Standard Duty * Configure as a Rotary Converter For applications where constant voltage balance and/or 100% of the rated hp is required. The ultimate in phase converter technology... 1% voltage balance under all load conditions! Sales & Technical Support 1-888-7GENTEC You only need to determine the horsepower range and choose between heavy-duty and standard-duty when you are sizing a GENTEC American Rotary static Phase Converter. 1. Choose the static phase converter with the hp range that includes the hp of the motor to be run. - Over-sizing the converter will not work. - For 2-speed motors, size the converter to the larger hp. - Some of the hp ranges of the static phase converters overlap. If the equipment is hard-starting, use the larger of the two converters that still includes the hp of the machine to be run. - The equipment is started more than 3 times per hour. - Instant reversing will be used. - The motor in the equipment is more than 1700-1800 RPM - The motor in the equipment is older than 1965 - The motor in the equipment is made in Taiwan or Germany - The equipment has a large load to start, i.e. lathe, planer, wide belt sander, dust collector, etc. More information on Starting Loads > - None of the requirements for heavy-duty are met. When in doubt, use a heavy-duty static phase converter, or call our 24/7 toll free sales and technical support line at 1-(***)-743-6832. *Delta wound motors can produce up to 50% of their rated hp. They are uncommon and usually found in machines from Germany and Italy. 20HP machines must not be hard-starting GENTEC American Rotary's AutoLinkTM Sensor automatically determines when your machine is turned on. The static phase converter is wired in before the machine switch so it is not necessary to tamper with the machines internal wiring. Simply install the static phase converter between the circuit breaker and the machine. Back to top > GENTEC American Rotary manufactures and distributes the largest selection of phase converters in the world! GENTEC American Rotary's RPM/Voltage sensor tells the static phase converter when to drop the built-in motor starter out. The equipment is then switched over to the continuous running circuit. Back to top > By simply adding an idler motor, you can upgrade your static converter to a powerful rotary converter! Our exclusive DataLink Technology advances performance by offering real-time component status and diagnostics. Back to top > Our experienced staff is available 24/7 to answer your questions. Aggressive Capacitive Starting: Flexible Mounting Options / Easy Installation: Each GENTEC static phase converter has five different mounting configurations built in so that you don’t have to compromise when mounting. Mounting hardware is includes as well as diagrams that show the different positions. Back to top > Forget the wires! We have included oversized, easy to use terminal blocks labeled for easy wiring. The terminal blocks are housed in an oversized conduit box with pre-punched knockouts for quick and easy wiring and installation. Back to top > All components are sized for a lifetime of motor starting. Custom designed capacitors and switchgear are used to insure that your equipment will start each and every time - for a long time. Choose our Heavy-Duty static converter for machines that have a longer start time, such as machines with a flywheel or high RPM’s (these include machines such as gear-head lathes, flywheel shears, etc.), other machines can use our standard duty static phase converter. Back to top > The static phase converter automatically shuts down in case of a power failure. When the power is reinstated, the converter is ready to go again. For your protection, it will not restart your motor starter controlled equipment. Back to top > Due to the fact that our static converters are passive (this means that they are used only when starting a machine), once the main machine is started, other machines may be started on the same circuit. Back to top > Configure as a Rotary Phase Converter: Adding an idler motor and/or voltage balancer can turn your GENTEC static phase converter into a powerful rotary phase converter. Details on how to do this are included in the installation/operation manual. Back to top > All photography herein is protected and may not be altered or duplicated. Copyright 2006 GENTEC American Rotary Summary of My Selling Policies American Rotary is open for business every day of the year. Toll Free Technical Support is available 24 hours a day, 7 days a week. The general sales office is open Monday-Sunday from 6am-10pm cst. All phone calls are routed from our toll free number 1-(***)-743-6832. For immediate service, please call. Emails may take up to 24 hours to answer. Read my policies on my summary (please look at our rules and privacy policy) |
